2-35

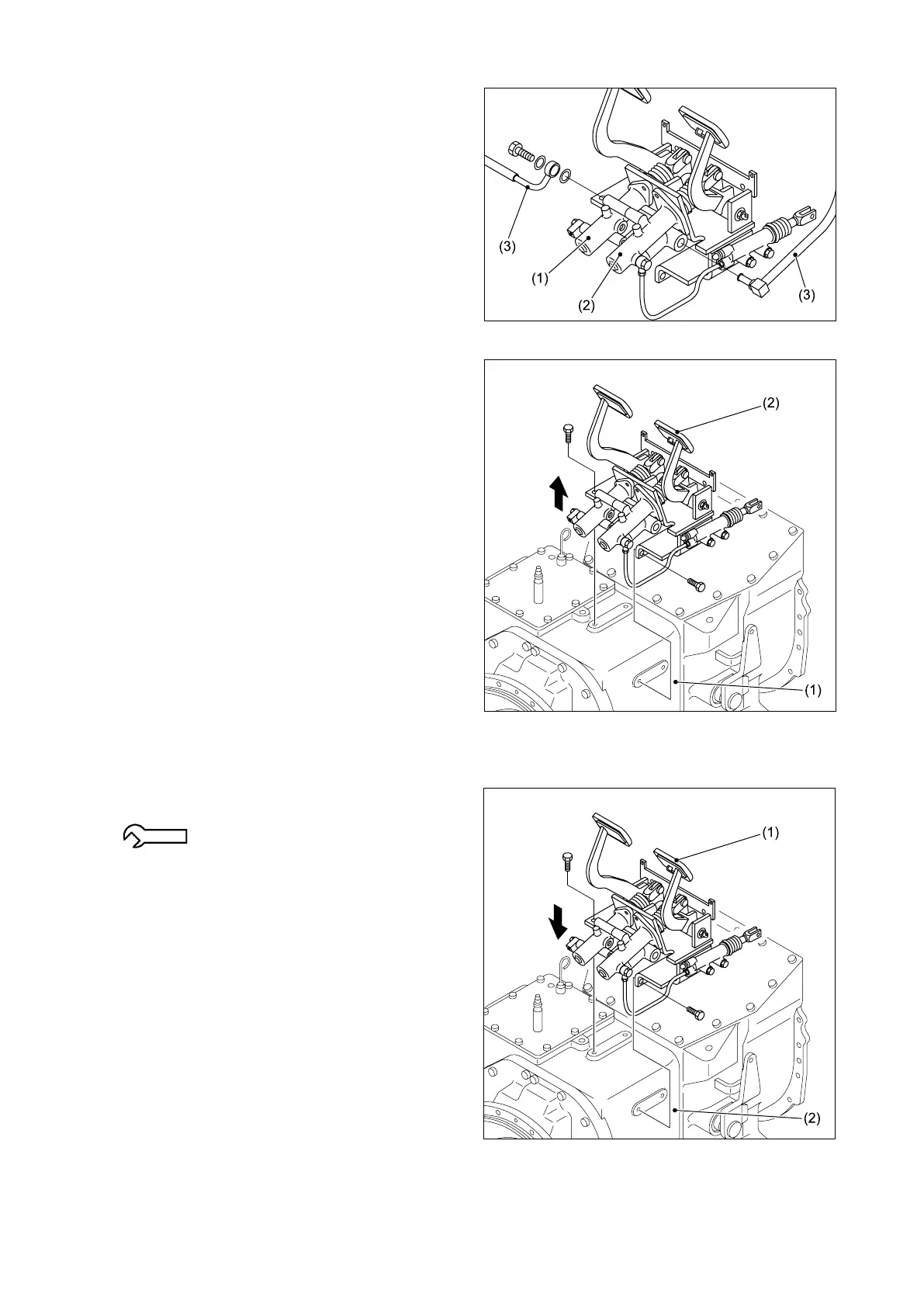

Fig. 2.100
Fig. 2.101
Fig. 2.102
⑤ Remove the return hoses (3) from the brake
booster (1) and clutch booster (2).
⑥ Remove the pedal assembly (2) from the
transmission (1).
■ REINSTALLATION
① Install t he pe da l as sembly (1 ) on th e
transmission (2).
21.2 N-m {2.16 kgf-m}
[15.6 lbf-ft]
