2-36

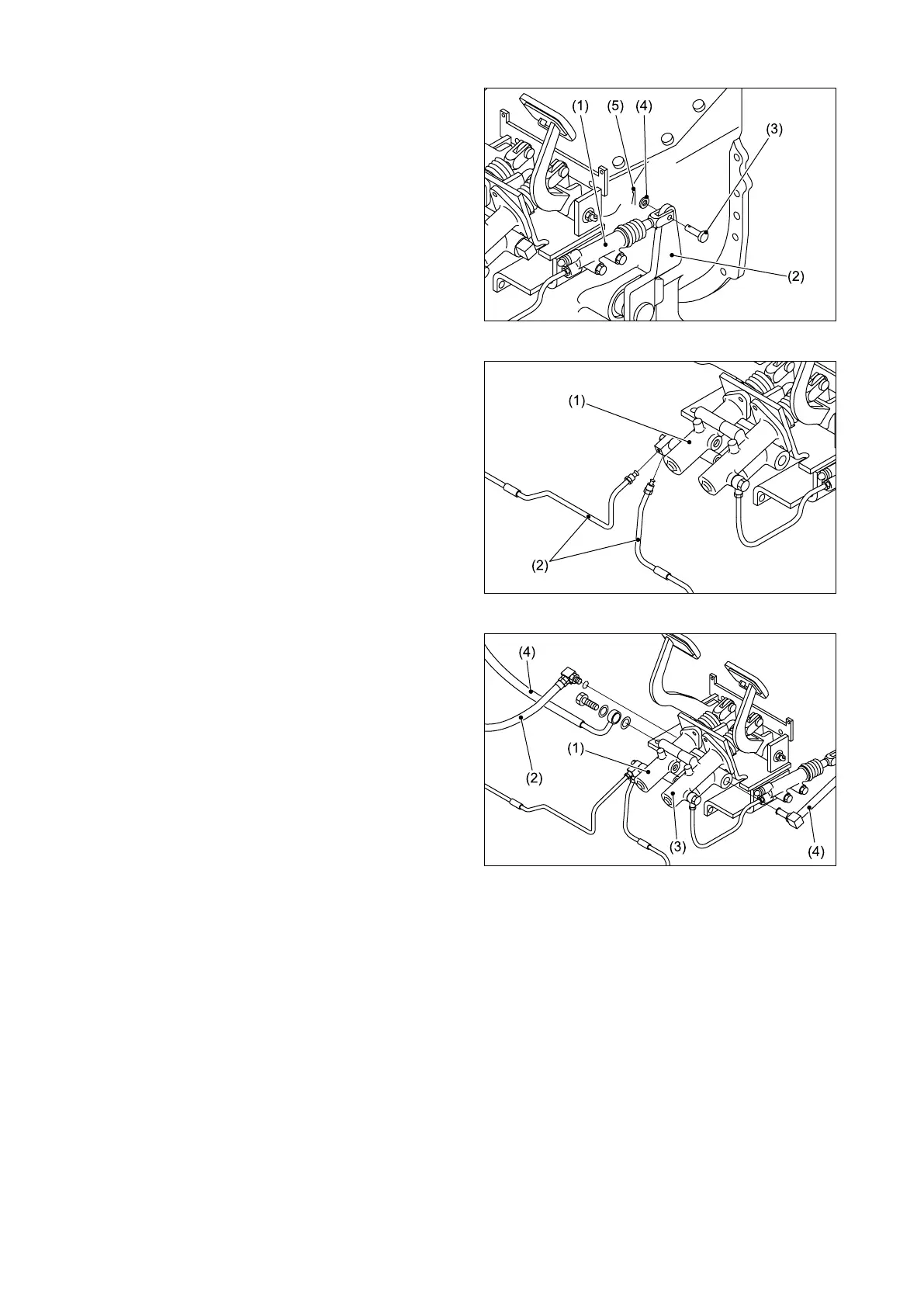

Fig. 2.105
Fig. 2.104
Fig. 2.103
② Connect the clutch release cylinder (1) and
the arm (2) using the pin (3), and secure them
using the washer (4) and split pin (5).
③ Install the brake pipes (2) on the brake booster
(1).
④ Connect the high-pressure hose (2) to the
brake booster (1). Connect the return hoses (4)
to the brake booster (1) and clutch booster (3).
⑤ Install the floorboard kit. (See “2.8 FRONT
GUARD.”)
To Next Page
