2-17
Fig. 2.51
Fig. 2.50
Fig. 2.52

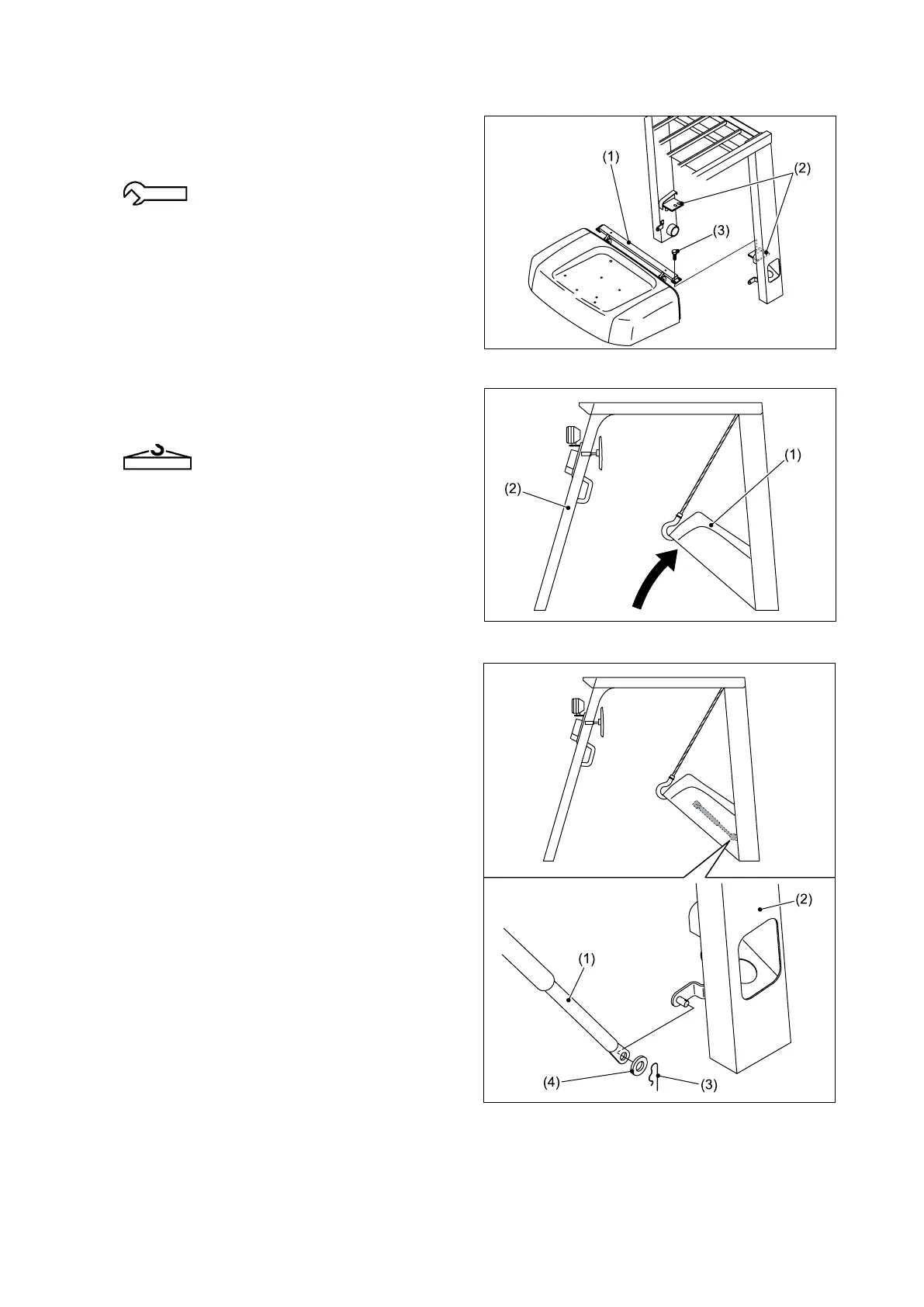

■ REINSTALLATION
① Fit the bracket (1) to the overhead guard’s rear
legs (2), and then secure them using the bolts
(3).
21.2 N-m {2.16 kgf-m}
[15.6 lbf-ft]
② Raise the engine hood (1). Keep the engine
hood raised by fastening it to the overhead
guard (2) using a rope.
27 kg [59.5 lbs]
③ Install the gas spring (1) on the overhead
guard (2) using the clip (3) and washer (4).
④ Install the overhead guard and engine
hood on the frame. (See “2.2 HOOD AND
OVERHEAD GUARD.”)
To Next Page
