3-10
Fig. 3.32
Fig. 3.31
Fig. 3.30
Fig. 3.29

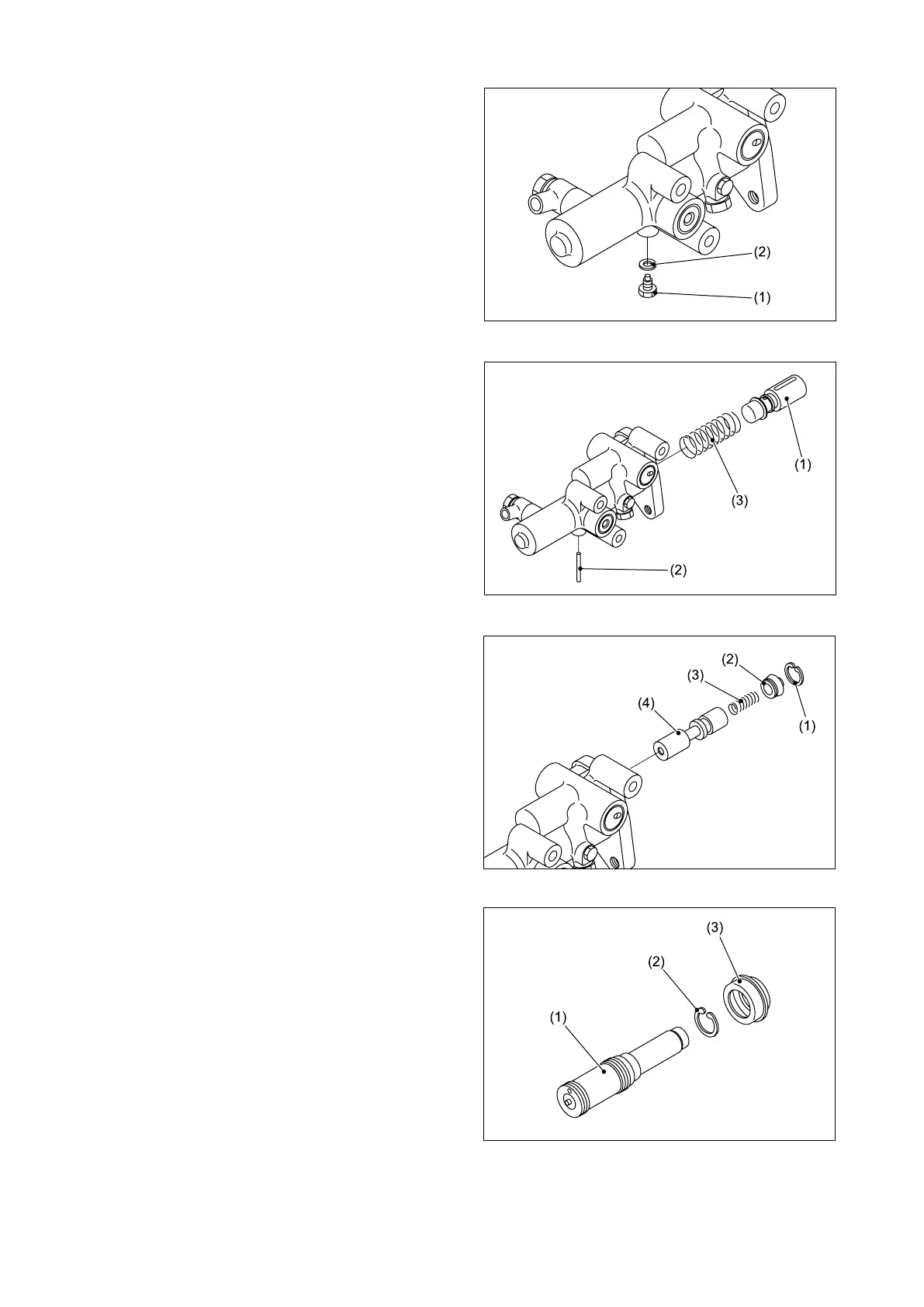

④ Remove the bolt (1) and gasket (2).
⑤ Slightly push in the master cylinder piston
(1) and remove the pin (2). Then remove the
master cylinder piston (1) and spring (3).
⑥ Remove the snap ring (1) and remove the plug
(2), spring (3), and spool (4).
⑦ Disassembling the reaction piston
1) Remove the snap ring (2) from the reaction
piston 1 (1) and then remove the guide
assembly (3).
