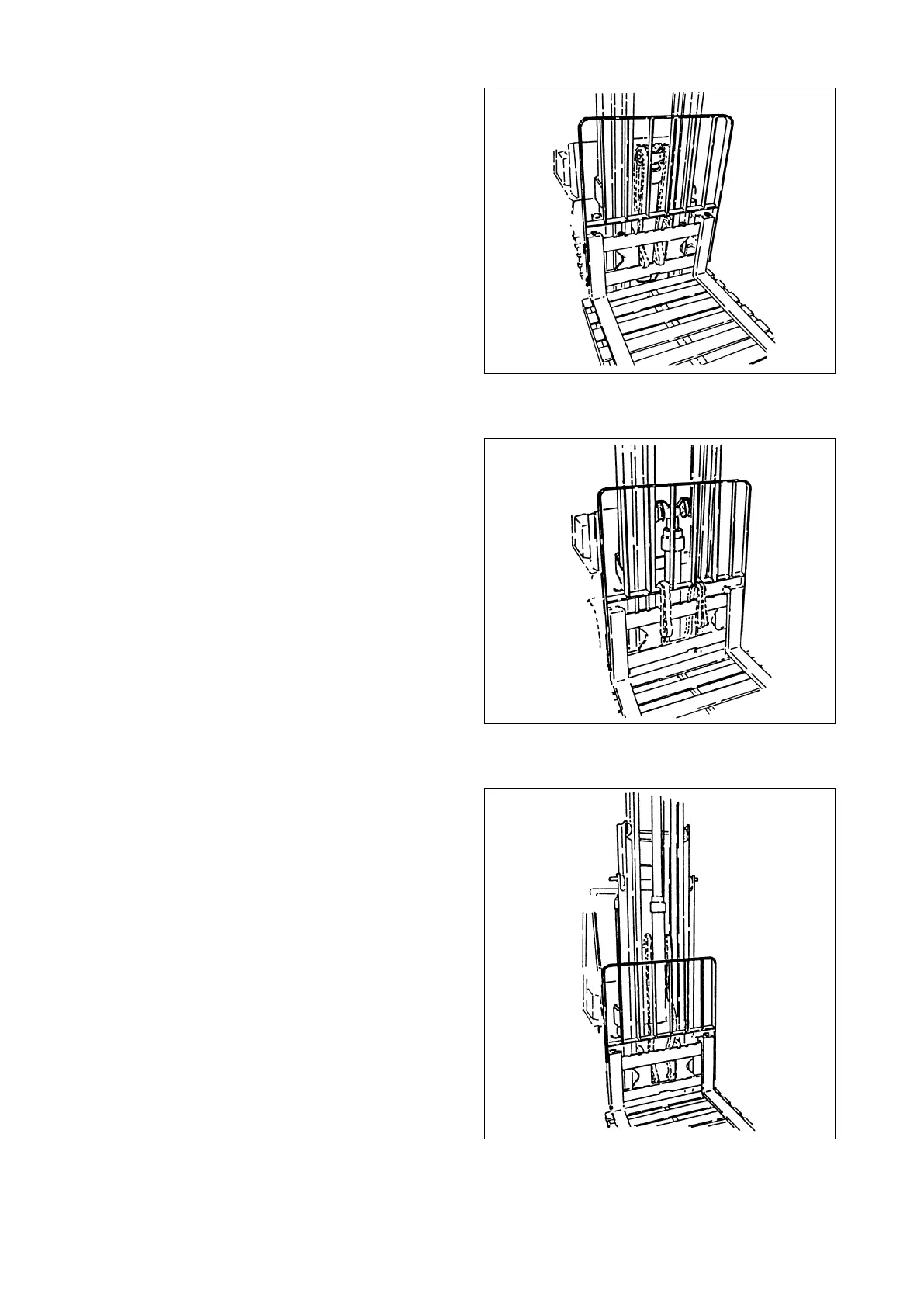

Fig. 3.492
Fig. 3.493
Fig. 3.494
(1) Remove the carriage and forks as a complete
assembly.
① Lower the carriage and fork assembly on the
pallet and loosen the chains.
② Remove the chain stopper and lift the chains
to remove them from the chain sleeves.
③ Remove the piston heads.
④ Using hydraulic pressure, lift the inner masts
above the carriage end rollers.
