3-72
Fig. 3.230
Fig. 3.233
Fig. 3.232
Fig. 3.231

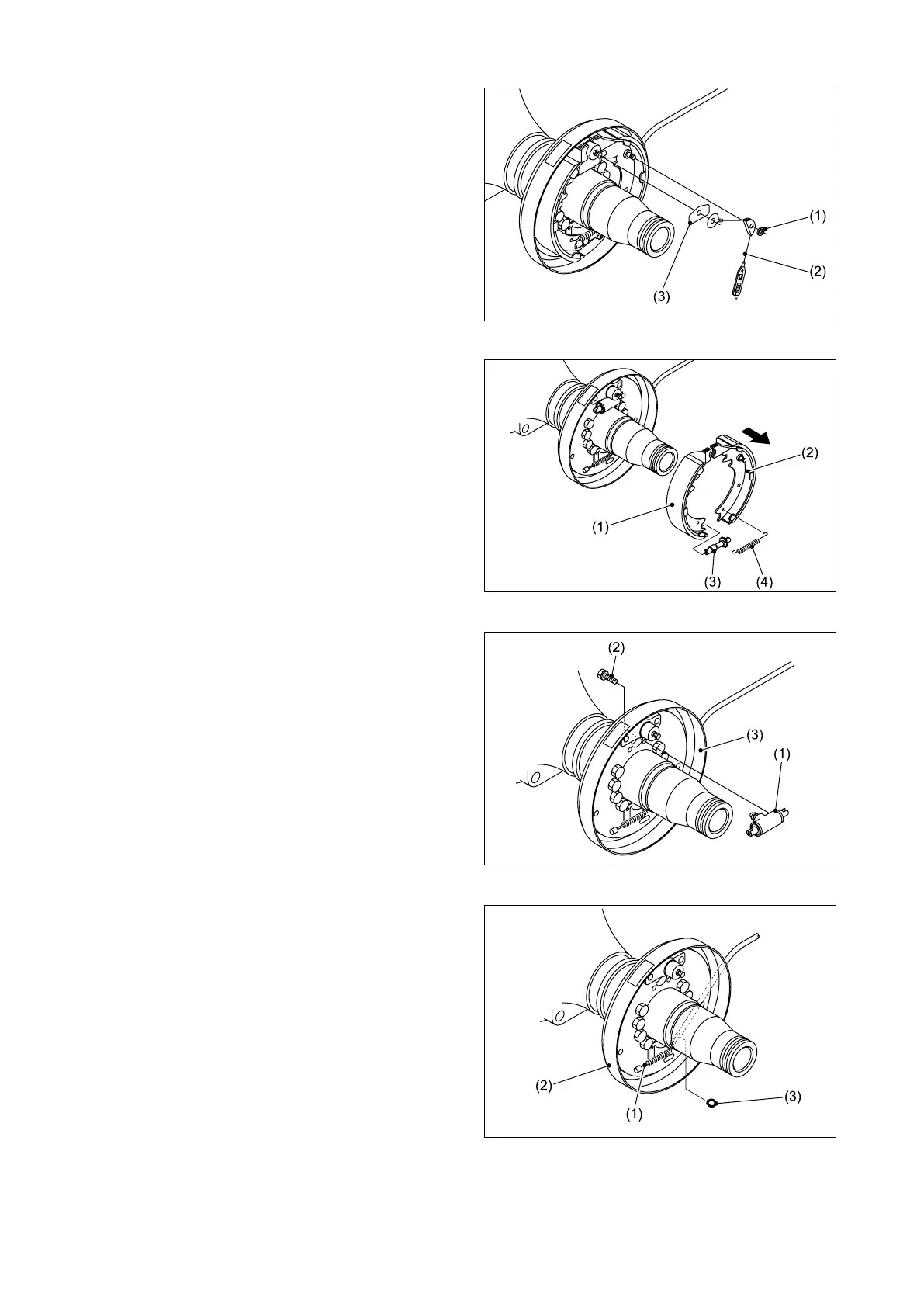

⑤ Remove the washer (1), guide cable (2) and
shoe guide plate (3).
⑥ Remove the primary shoe (1) and secondary
shoe (2), together with the adjuster (3) and
adjuster spring (4).
⑦ Remove the brake pipe from the wheel
cylinder (1).
Remove the two wheel cylinder mounting
bolts (2) and then remove the wheel cylinder
(1) from the backing plate (3).
⑧ Remove the retainer (3) securing the parking
brake cable (1) to the backing plate (2), and
then remove the parking brake cable (1).
