3-73
Fig. 3.234
Fig. 3.236
Fig. 3.235

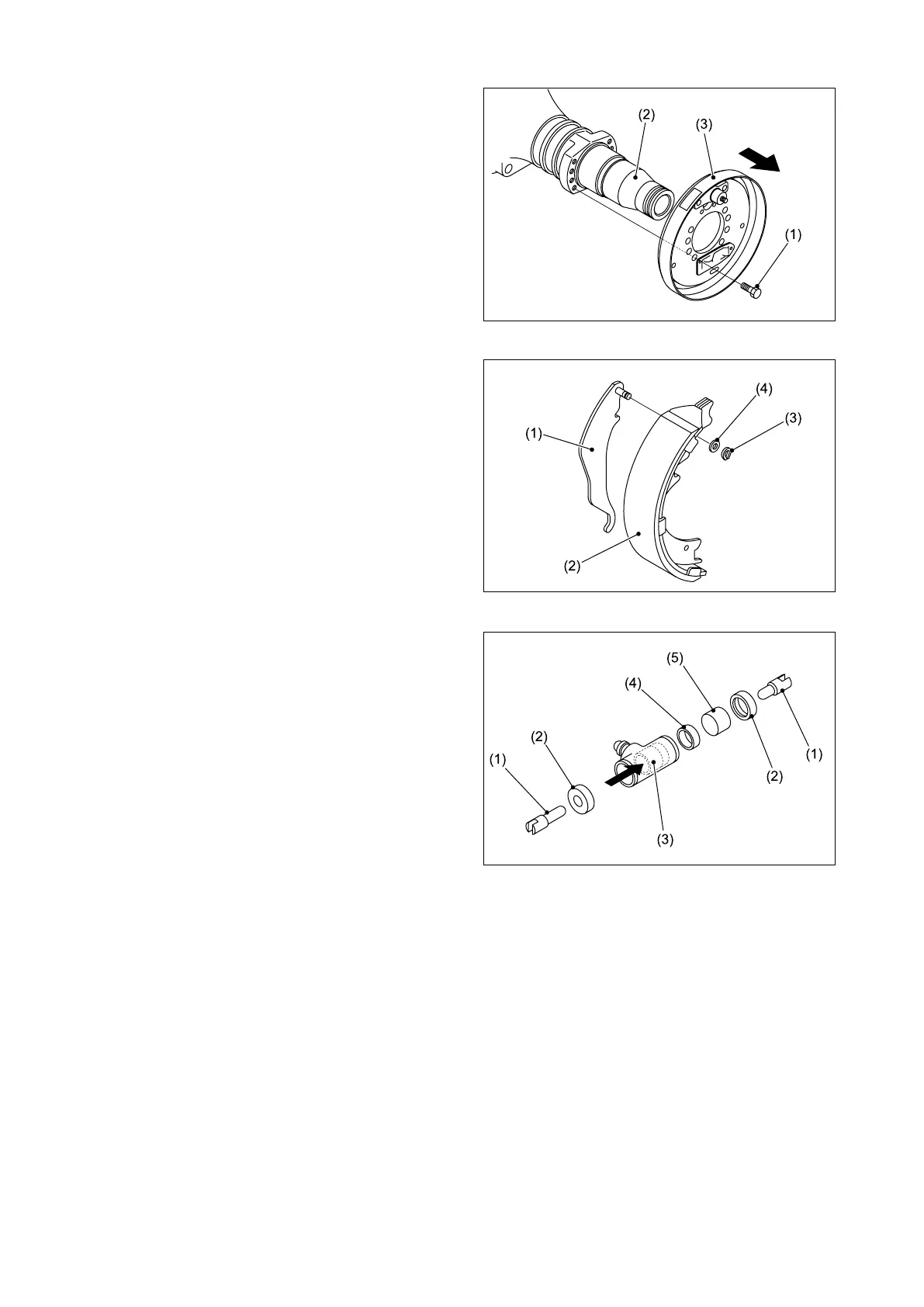

⑨ Remove the eight backing plate mounting
bolts (1) and then remove the backing plate (3)
from the drive axle (2).
⑩ Remove the retainer (3) and washer (4)
securing the brake lever (1) to the primary
shoe (2). Remove the brake lever (1).
⑪ Disassemble the wheel cylinder as follows:
● Removethepushrod(1)anddustcover(2)
from each side of the wheel cylinder.
● Press one piston (3) into one end of the
cylinder to remove the piston cup (4) and
piston (5) from the other end of the cylinder.
● Pressthepiston(3)withthengerstoremove
from the cylinder.
