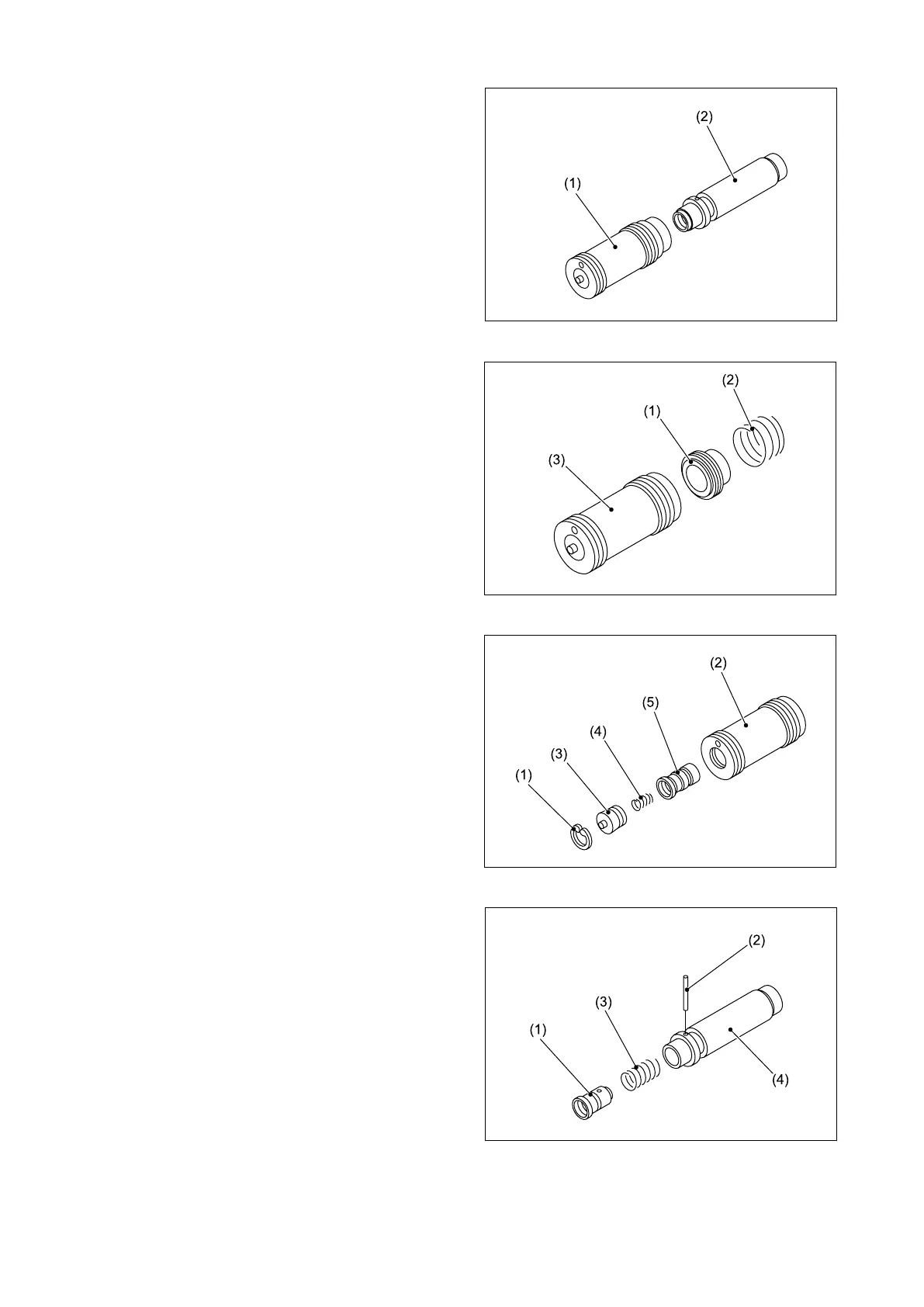

2) Remove the reaction piston 1 (2) from the
power piston (1).
3) Remove the reaction piston 2 (1) and spring (2)
from the power piston (3).
4) Remove the snap ring (1) and remove the plug
(3), spring (4), and control valve (5) from the
power piston (2).
5) Push in the control valve seat (1) and remove
the pin (2). Then remove the control valve
seat (1) and spring (3) from the reaction piston
1 (4).
Fig. 3.57
Fig. 3.56
Fig. 3.55
Fig. 3.54
