3-33
Fig. 3.109
Fig. 3.112
Fig. 3.111
Fig. 3.110

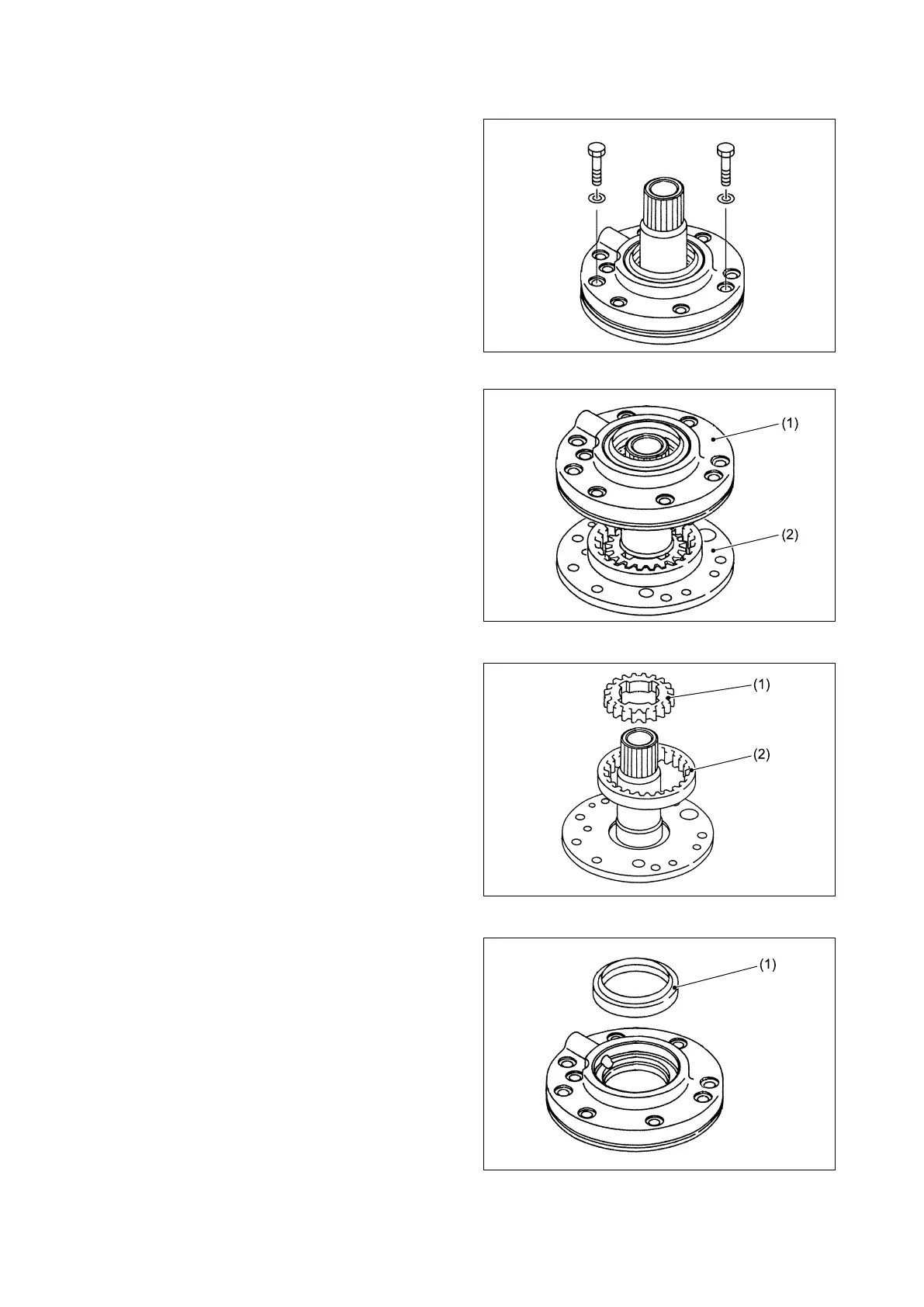

■DISASSEMBLING CHARGING PUMP
① Remove the bolts assembling the charging
pump.
② Separate the case (1) from the stator support
(2).
③ Remove the drive gear (1) and driven gear (2)
from the case.
④ Remove the oil seal (1) from the case.
Note: Do not reuse the removed oil seal.
To Next Page
