TCM FD35C9 - Page 227

3-113
Fig. 3.366
Fig. 3.369
Fig. 3.368
Fig. 3.367

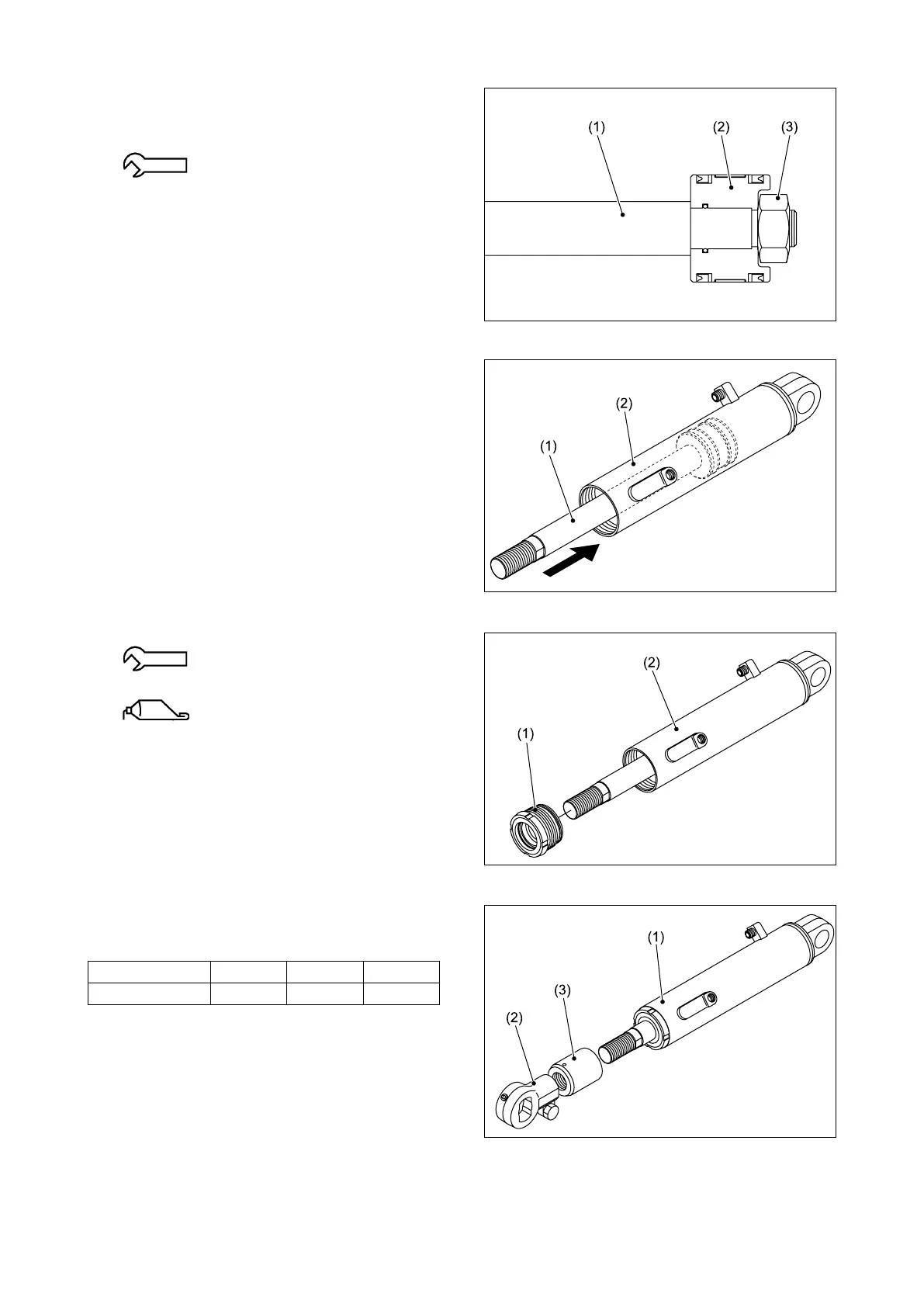

⑤ Install the piston (2) on the rod (1).
⑥ Install the nut (3) on the rod (1). Stake the nut
at three places around the edge.
735±74 N-m {75±7.5 kgf-m}
[542.1±54.6 lbf-ft]
⑦ Install the rod assembly (1) into the cylinder
(2).
⑧ Install the cylinder cap (1) on the cylinder (2).
392±49 N-m {40±5 kgf-m}
[289.1±36.1 lbf-ft]
Apply THREEBOND#1344 on the
threaded part.
⑨ Install the joint (2) and collar (3) on the
cylinder (1).
(mm [in.])
Forward tilt angle 10° 6° 3°
Collar (3) length 22 [0.866] 66 [2.598] 98 [3.858]
