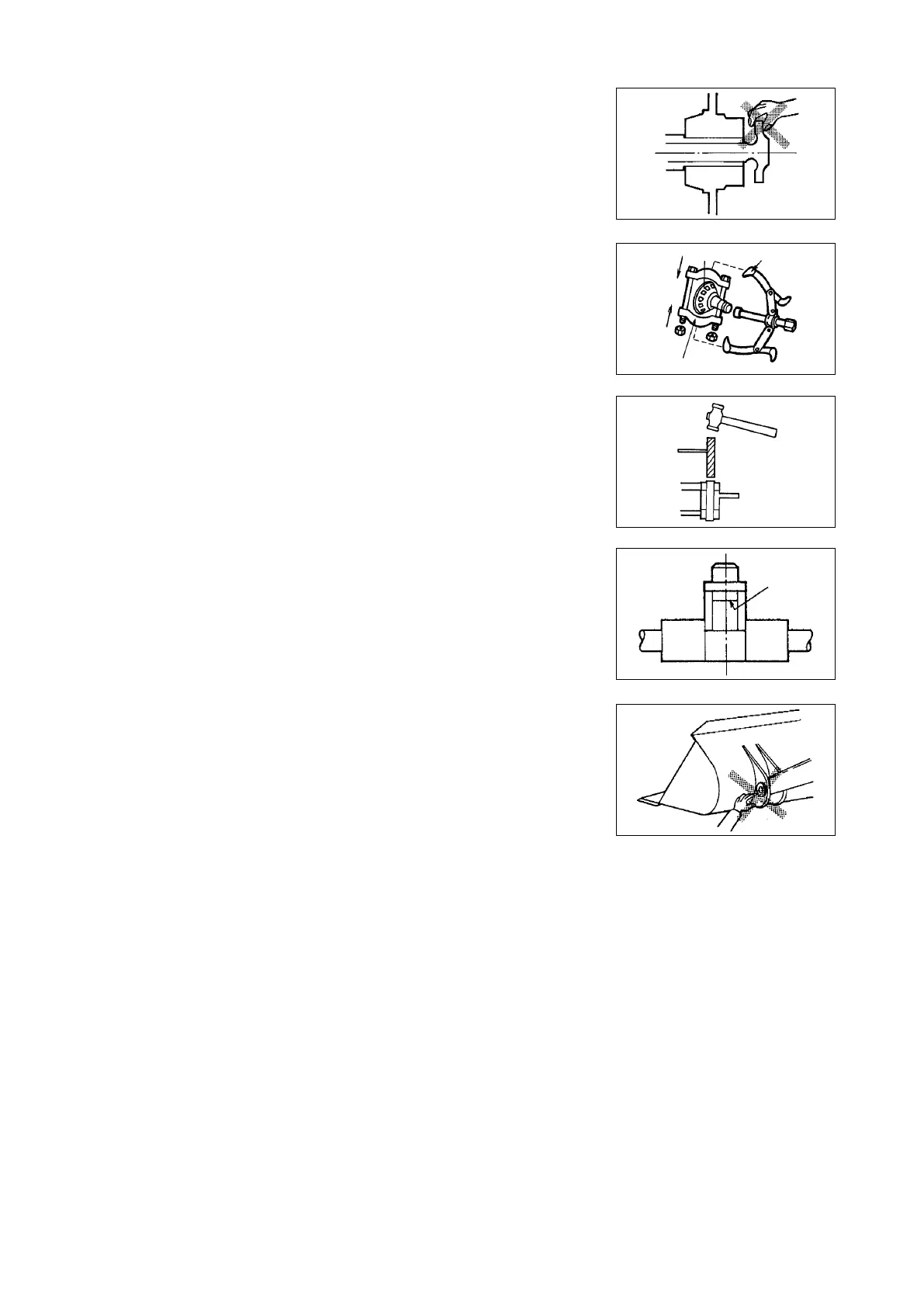

(15) The drive shaft and planet carrier should be installed by turning them.
Do not push them or hit them. Be careful not to get your fingers
pinched.
(16) If it is hard to remove the HST motor sprocket in a Bobcat loader,
do not hit the puller with force. Only tap the puller lightly to turn the
wrench.
(17) If you cannot engage the puller’s jaws properly on the hub bearing in
order to remove it, insert a bearing separator between the inner race
and the ange and pull out the separator using the puller. (Do not use a
chisel; otherwise the bearing might be damaged.)
(18) Use a special jig with a handle to remove the king pin.
(19) Use a suitable tool with the correct diameter and a lock guide to install
bushings.
(20) Use a round drift to install a quenched, or hardened pin. Do not hit the
pin directly.
(21) Do not check the alignment of pin holes by inserting your ngers into
the holes. Check by looking.
(22) Find out in advance where the waste disposal facility is located.
(23) Use non combustible solvents for cleaning. Do not use any ammable
solvent, including gasoline. Do not use the cleaning uid tank to store
kerosene or diesel fuel.
(24) Make sure the nozzle valve is closed before turning on the car washer.
If you need to remove your hands from the hose while spraying, close
the nozzle valve.
BEARING
BEARING SEPARATER
PULLER
GUIDE
