3-132
Fig. 3.425
Fig. 3.427
Fig. 3.426

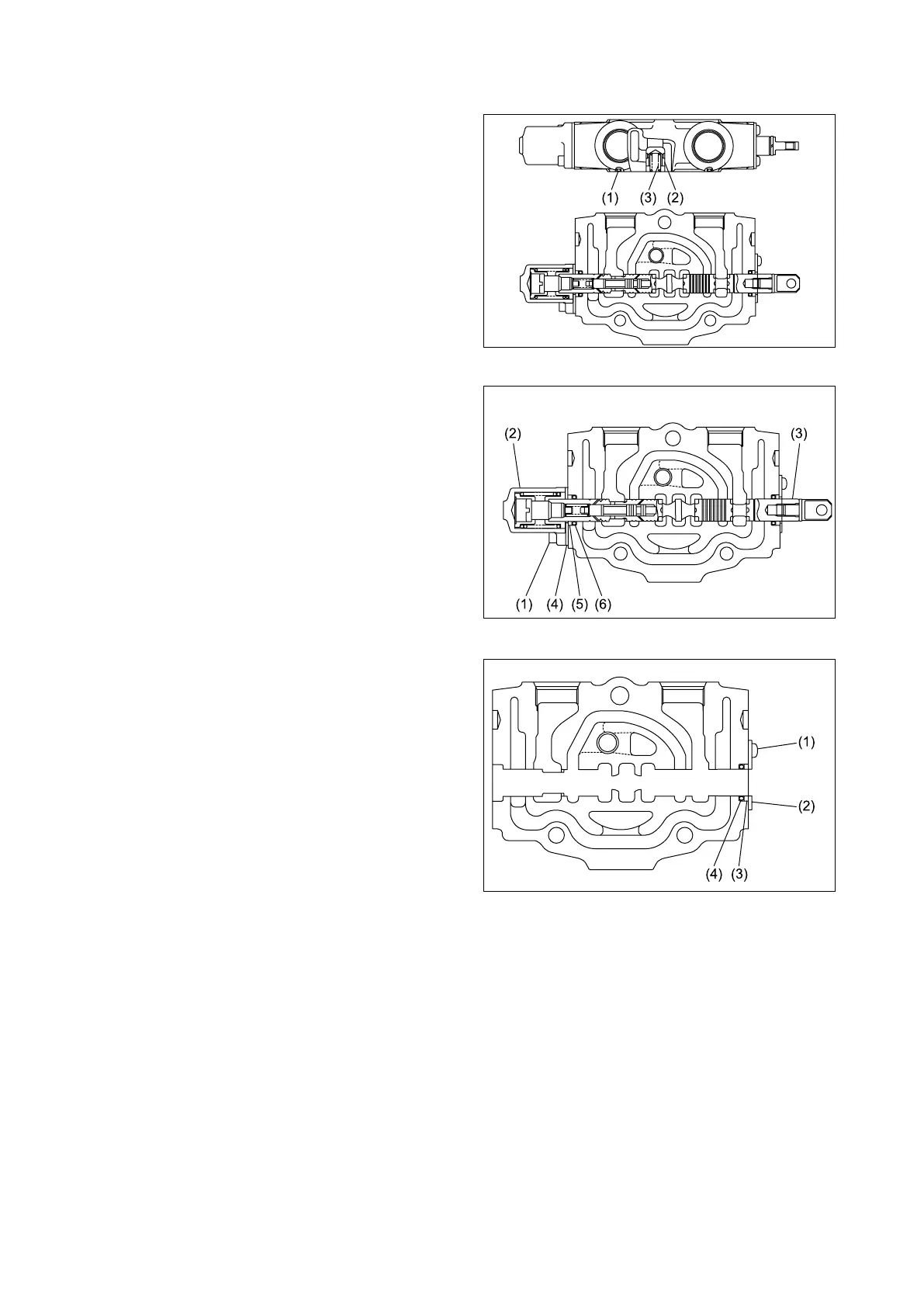

(2) Disassembling tilt spool section
① Remove the “O”-ring (1), poppet (2), and
spring (3) from the mating surfaces.
Note: Tag the spring and poppet for proper
reassembly.
② Loosen the socket head bolt (1) and then
remove the cap (2). Remove the spool (3) as a
sub-assembly, with the seal plate (4), wiper (5)
and “O”-ring (6) of the cap side installed on
the spool (3).
③ Loosen and remove the screw (1) at the
opposite side, and remove the seal plate (2),
wiper (3) and “O”-ring (4).
To Next Page
