3-151

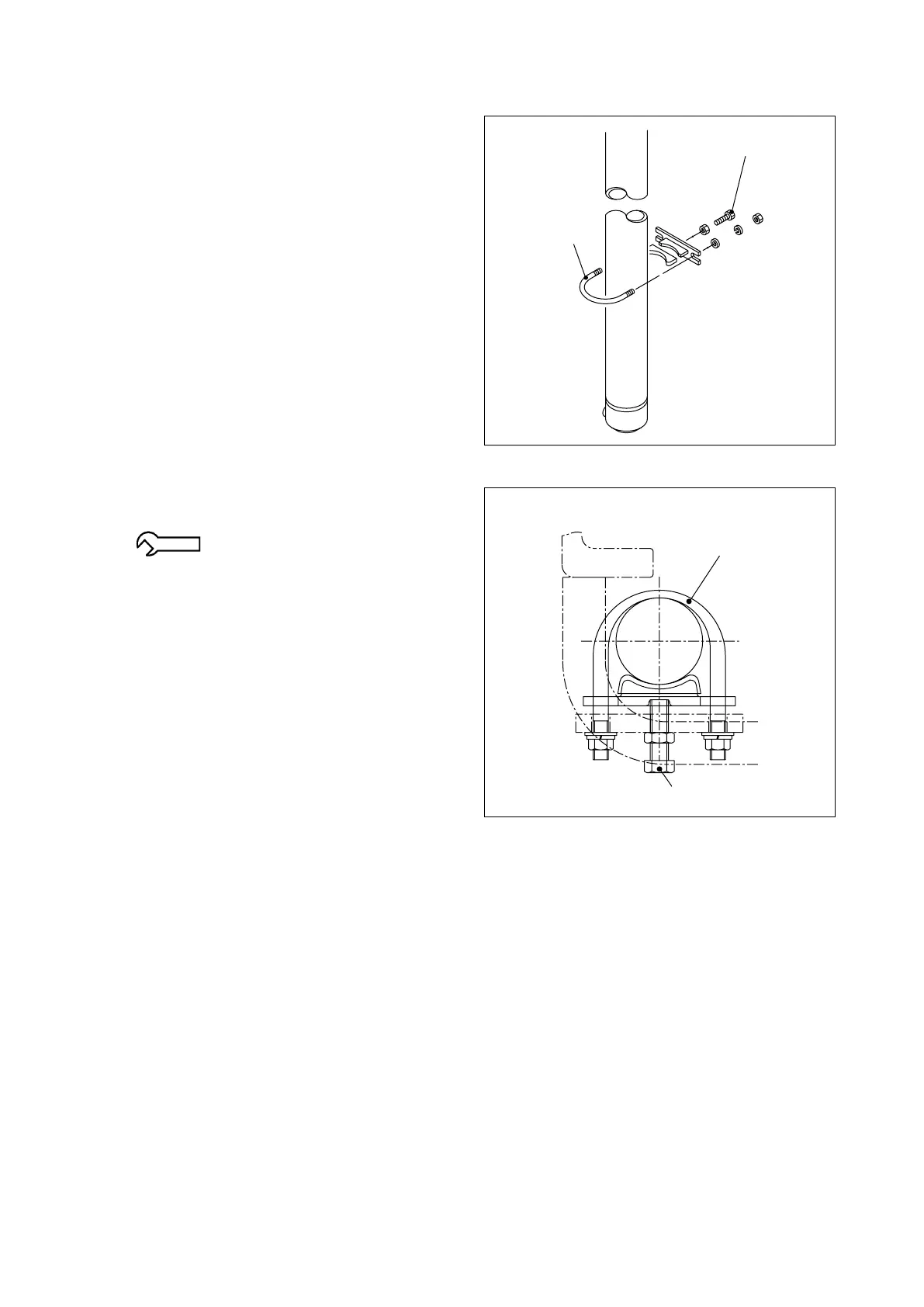

Fig. 3.480
Fig. 3.481
■CYLINDER SUPPORT “U” BOLT
Using the adjuster, adjust the distance between
the outer mast and each cylinder so that it is the
same for both cylinders.
Note: Do not overtighten the “U” bolt; otherwise
the cylinder may be damaged.
14.7 – 16.7 N-m [1.5 – 1.7 kgf-m]
[10.8 - 12.3 lbf-ft]
ADJUSTER
U-BOLT
U-BOLT
ADJUSTER
