3-154
Fig. 3.486
Fig. 3.487
Fig. 3.488

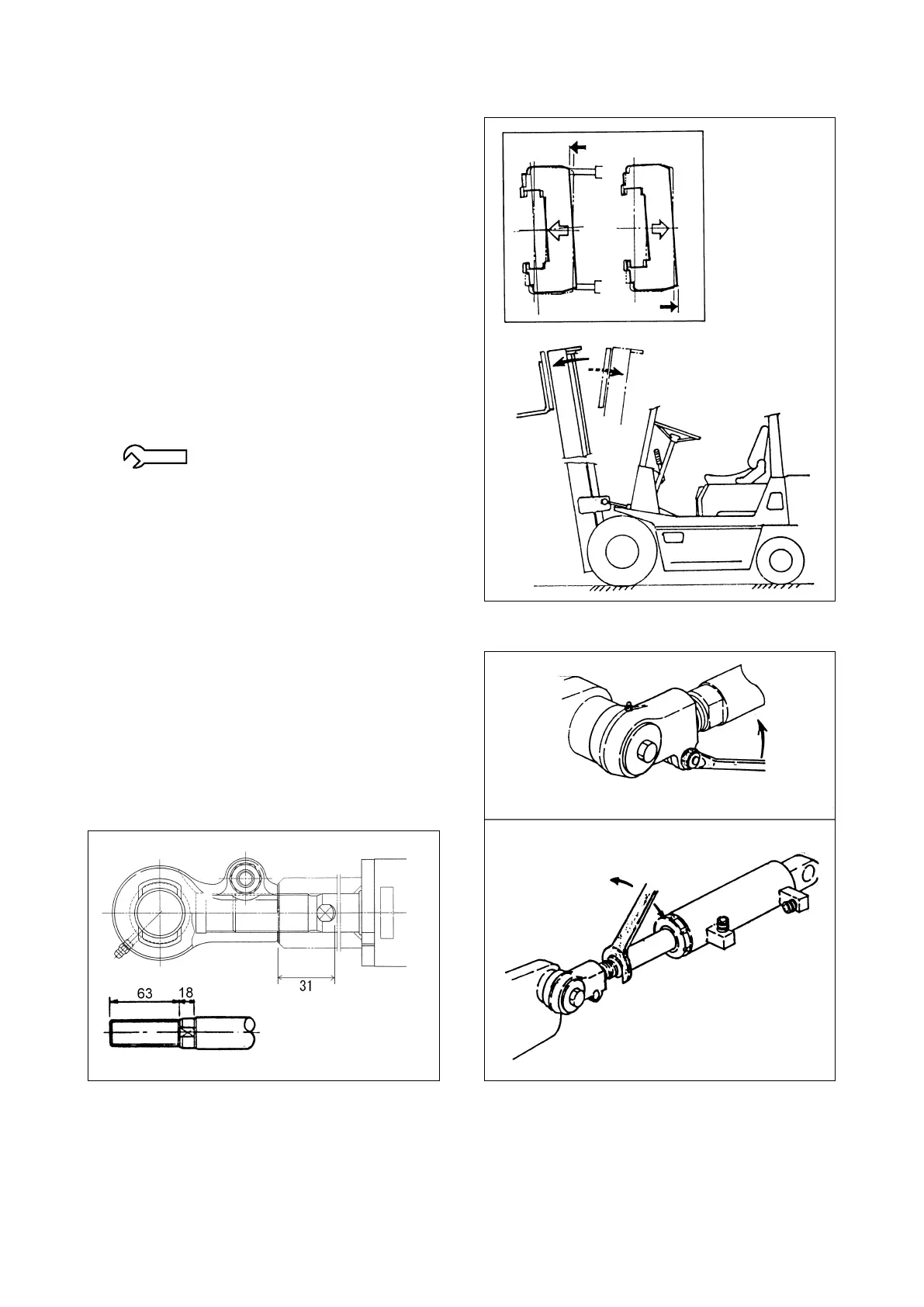

■ADJUSTING TILT CYLINDER
Lift the forks to the maximum height and tilt
the mast forward and backward slowly. If the two
cylinder rods are not the same length (if the mast
is twisted), adjust them to the same length.
(1) Loosen the lock nut at the rod end.
(2) Turn the piston rod to the right or left to
adjust the length.
If the piston rod is hard to turn, turn it while
tilting the mast hydraulically forward or
backward.
Note: For your safety, do not extrude the piston
rod more than 31 mm [1.221 in.].
(3) After adjustment, retighten the lock nut
securely.
107.9 ±20.6 N-m [12.1 ±2.4 kgf-m].
[79.6 ±15.2 lbf-ft]
