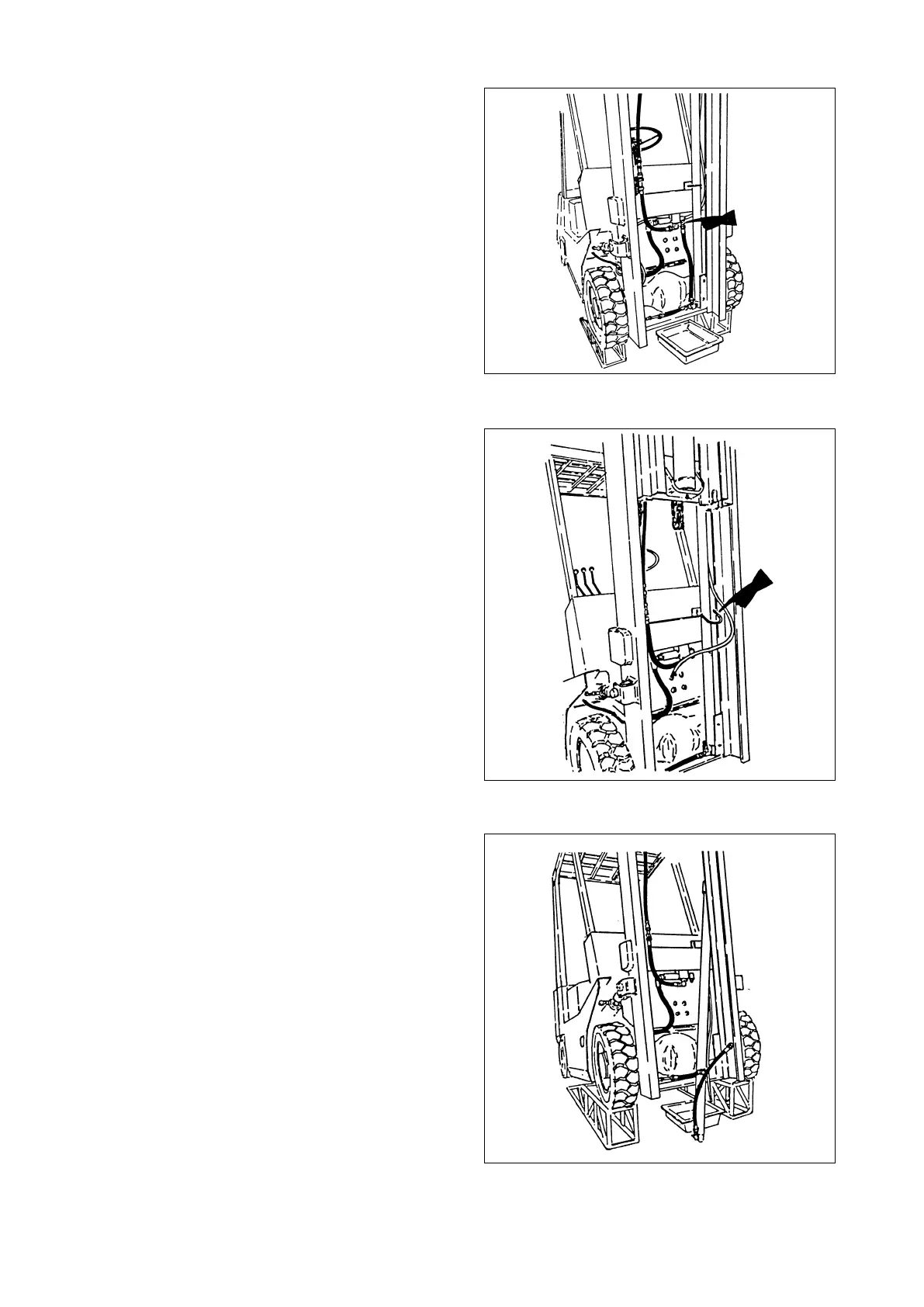

Fig. 3.501
Fig. 3.502
Fig. 3.503
⑦ Push forward the lift lever and hold there until
all the oil is drained from the cylinders.
⑧ Remove the four bolts securing the hose
guard.
⑨ Remove the right-side rear cylinder hose at
its top position. Remove the left-side cylinder
cross-over hose at the point connected to the
right-side cylinder.
⑩ Support both cylinders securely, remove the
“U” bolt. Use caution not to lose the shims.
⑪ Remove the set bolts from bottom of each
cylinder.
Lift the cylinder once and tilt it slightly while
putting out of the mast system.
