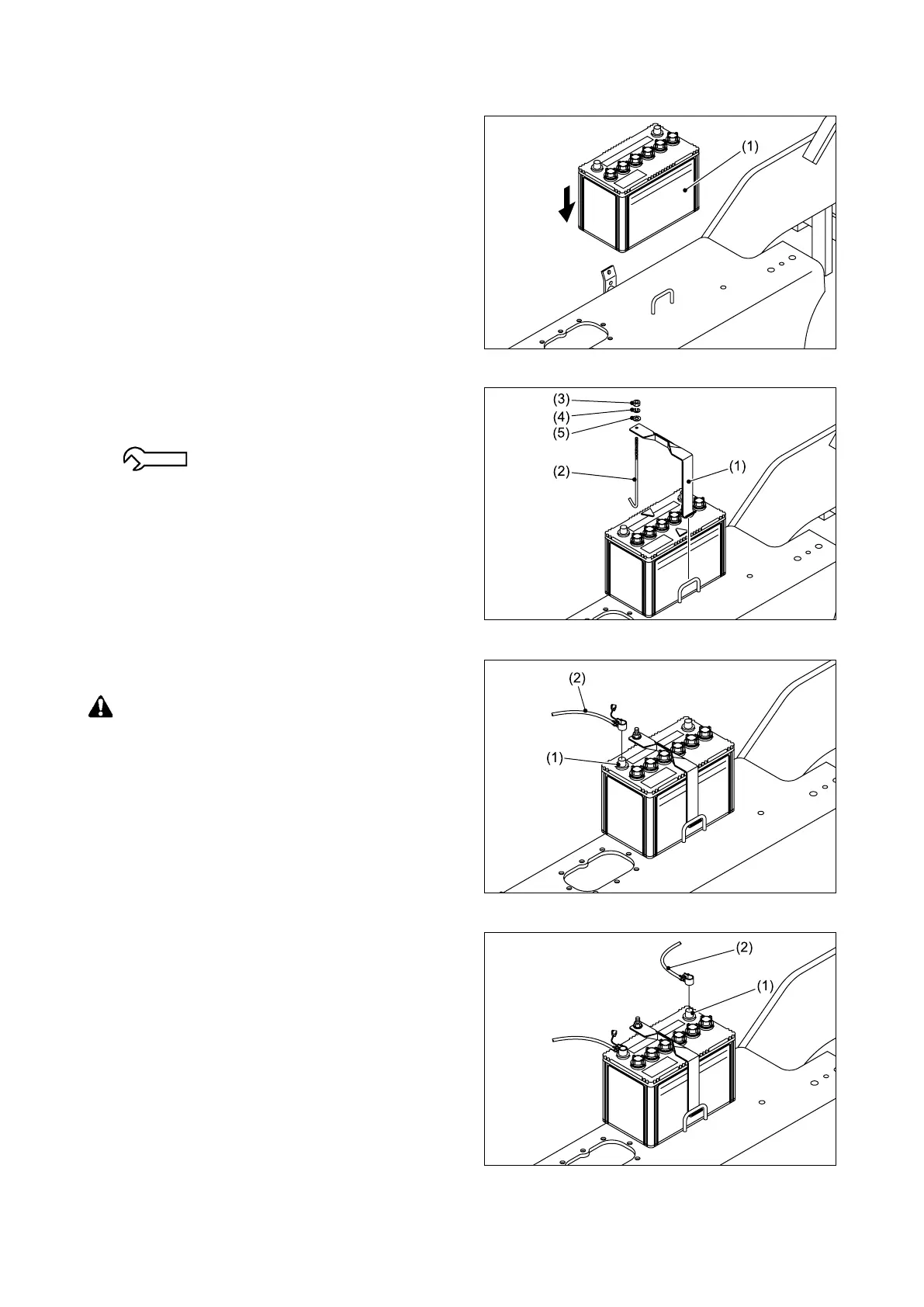

■ REINSTALLATION (gasoline trucks)
① Put the battery (1) in place.
② Install the battery holder (1) and anchor bolt
(2), and secure them using the nut (3), spring
washer (4), and washer (5).
2.9 - 4.8 N-m {0.3 - 0.5 kgf-m}
[2.1 - 3.5 lbf-ft]
③ Connect the positive (+) battery cable (2) to
the positive (+) terminal (1) of the battery.
Make sure to connect the battery cable
to the positive (+) terminal of the battery
rst.
④ Connect the negative (-) battery cable (2) to
the negative (-) terminal (1) of the battery.
