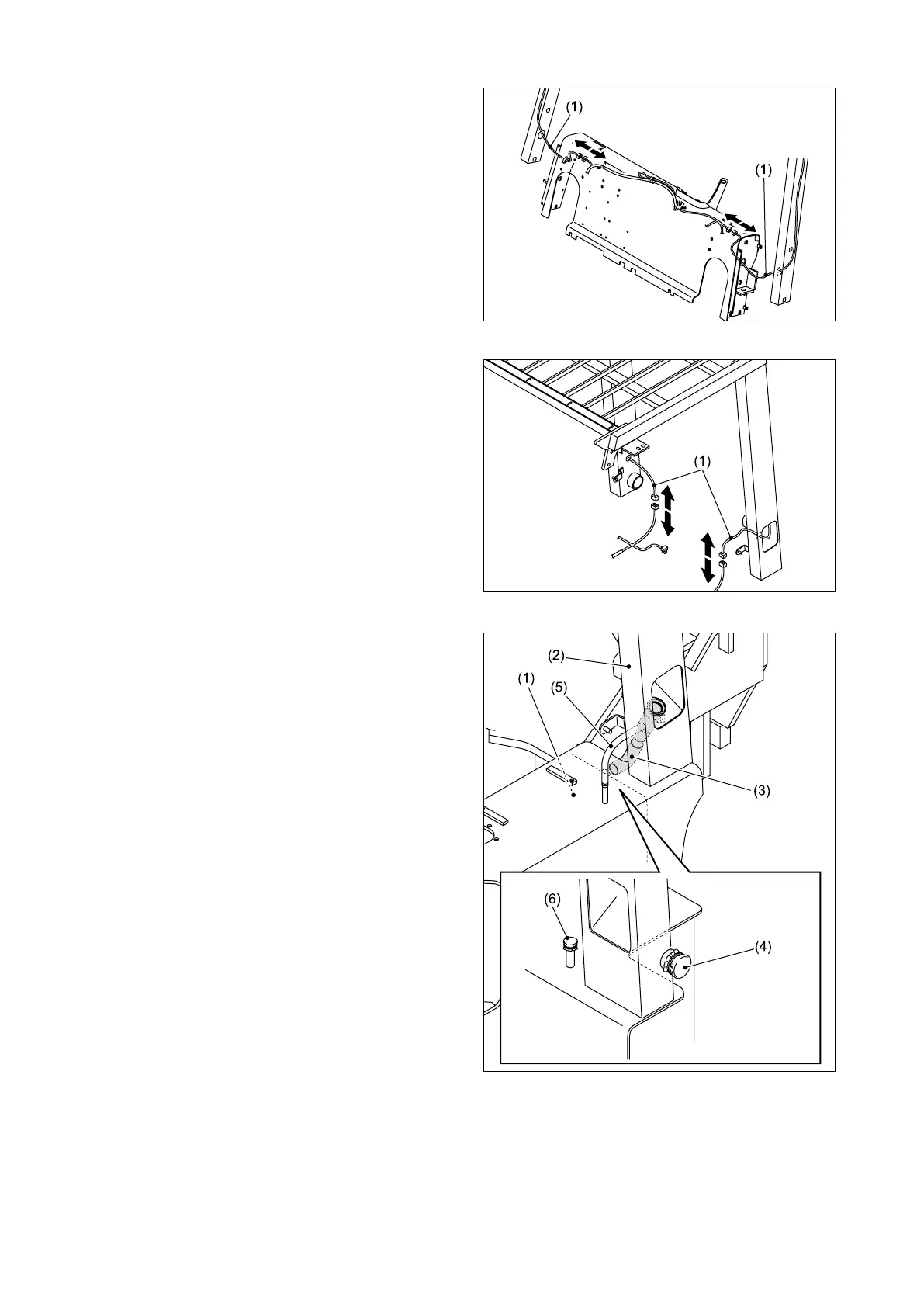

⑥ Remove the connectors of the overhead guard
wire harness (front) (1) from the connectors
of the front guard wire harness.
⑦ Remove the connectors of the overhead guard
wire harness (rear) (1) from the connectors of
the engine wire harness.
⑧ Remove the hose (3) from between the fuel
tank (1) and the overhead guard’s left rear leg
(2), and then install the cover (4) on the tank-
side pipe. Remove the hose (5) and install the
cover (6).
