2-13
Fig. 2.43
Fig. 2.42
Fig. 2.41

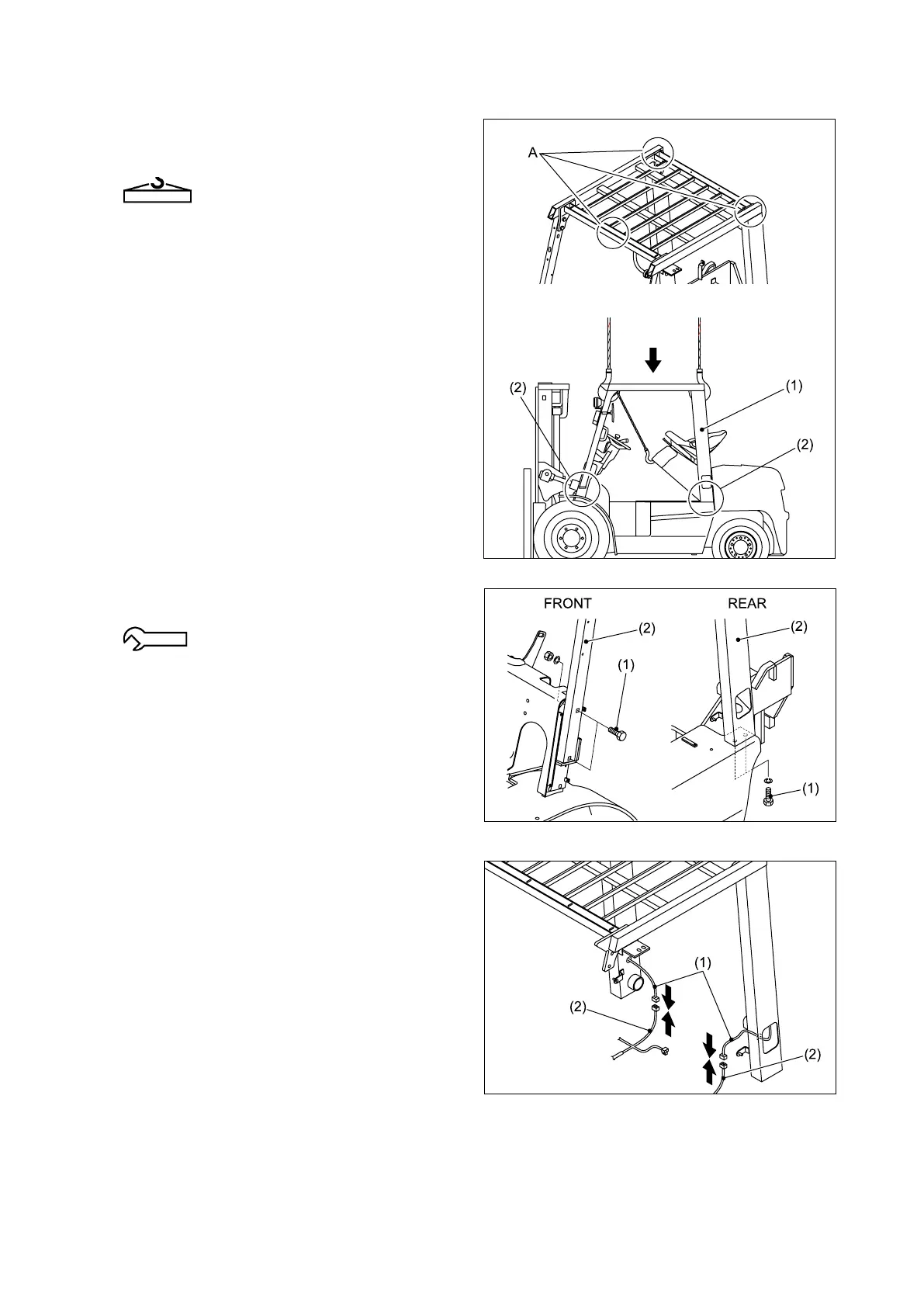

■ REINSTALLATION
① Hoist the overhead guard (1) with the wire
ropes attached to sections A. Then install the
overhead guard (1) on the frame (2).
154 kg [340 lbs]
② Secure the overhead guard (2) using the bolts
(1).
31.4 - 47.1 N-m {3.2 - 4.8 kgf-m}
[23.2 - 34.7 lbf-ft]
③ Connect the connectors of the overhead guard
wire harness (rear) (1) to the connectors of the
engine wire harness (2).
To Next Page
