TCM FD35C9 - Page 76

2-32

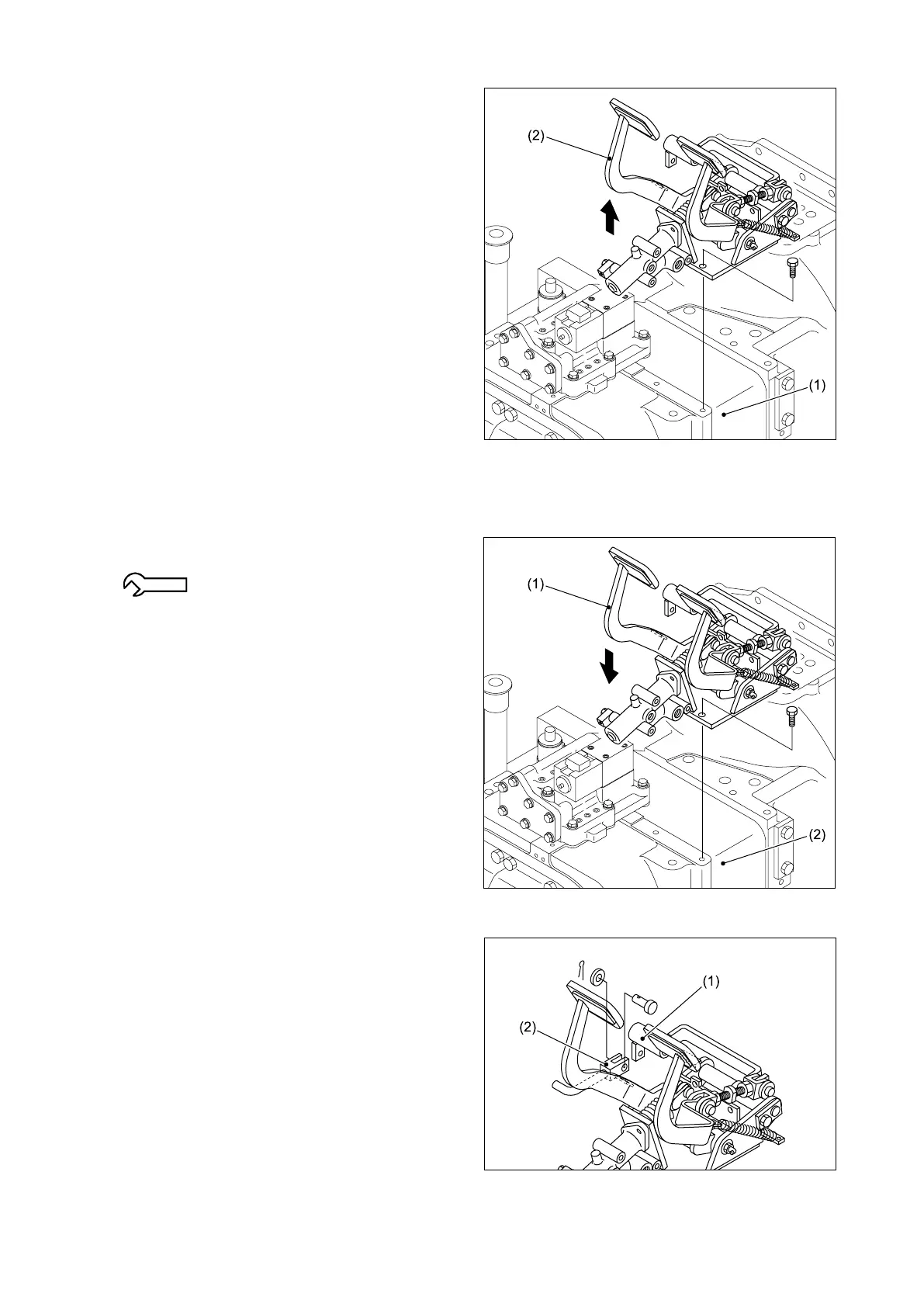

Fig. 2.92
Fig. 2.94
Fig. 2.93
⑤ Remove the pedal assembly (2) from the
transmission (1).
■ REINSTALLATION
① Install t he pe da l as sembly (1 ) on th e
transmission (2).
21.2 N-m {2.16 kgf-m}
[15.6 lbf-ft]
② Install the connecting rod (2) on the linkage
(1).
