2-47

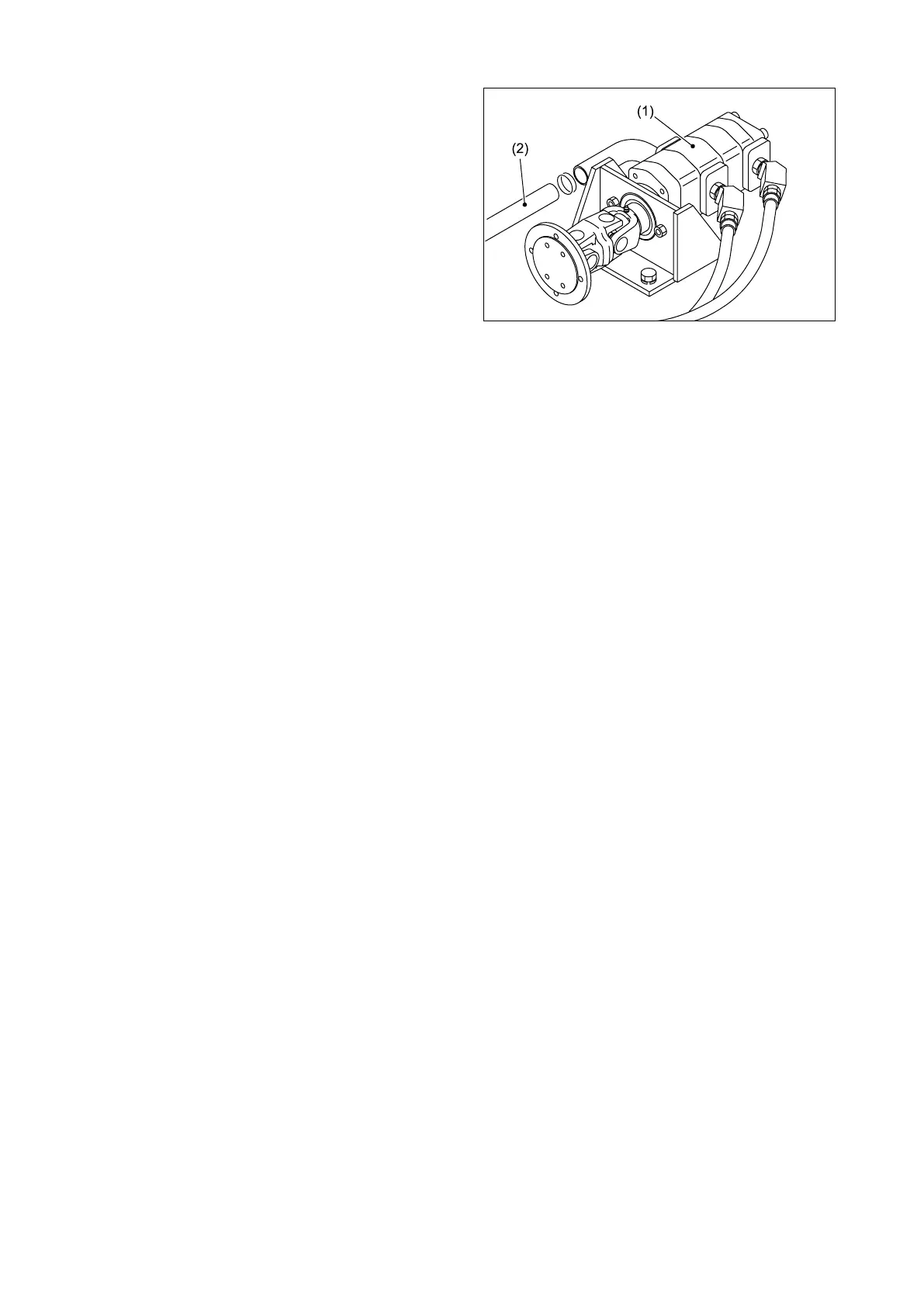

Fig. 2.121
⑨Connect the suction hose (2) leading to the
pump (1).
⑩ Install the front plate on the frame.
⑪ Connect the fuel hose to the engine.
⑫ Install the propeller shafts on the engine.
⑬ Installthefrontguardandtheoorboardkit.
(See “2.8 FRONT GUARD.”)
⑭Install the accelerator cable on the front plate.
⑮ Install the radiator. (See “2.6 RADIATOR.”)
⑯ I n s tall the counterwei g h t . ( S e e “ 2 . 4
COUNTERWEIGHT.”)
⑰ Install the air cle aner. (See “2.7 A IR
CLEANER.”)
⑱ Install the overhead guard and hood. (See “2.2
HOOD AND OVERHEAD GUARD.”)
⑲ Install the mast assembly. (See “2.17 MAST
ASSEMBLY.”)
⑳ Install the wheels.
