3132132 – Pipe Volume
The volume of the pipe between the foot
valve and the line valve is entered here.
This parameter is entered automatically
during the data transmission from the
calibration system to the MultiLevel. As
a rule it no longer needs to be changed
by hand.

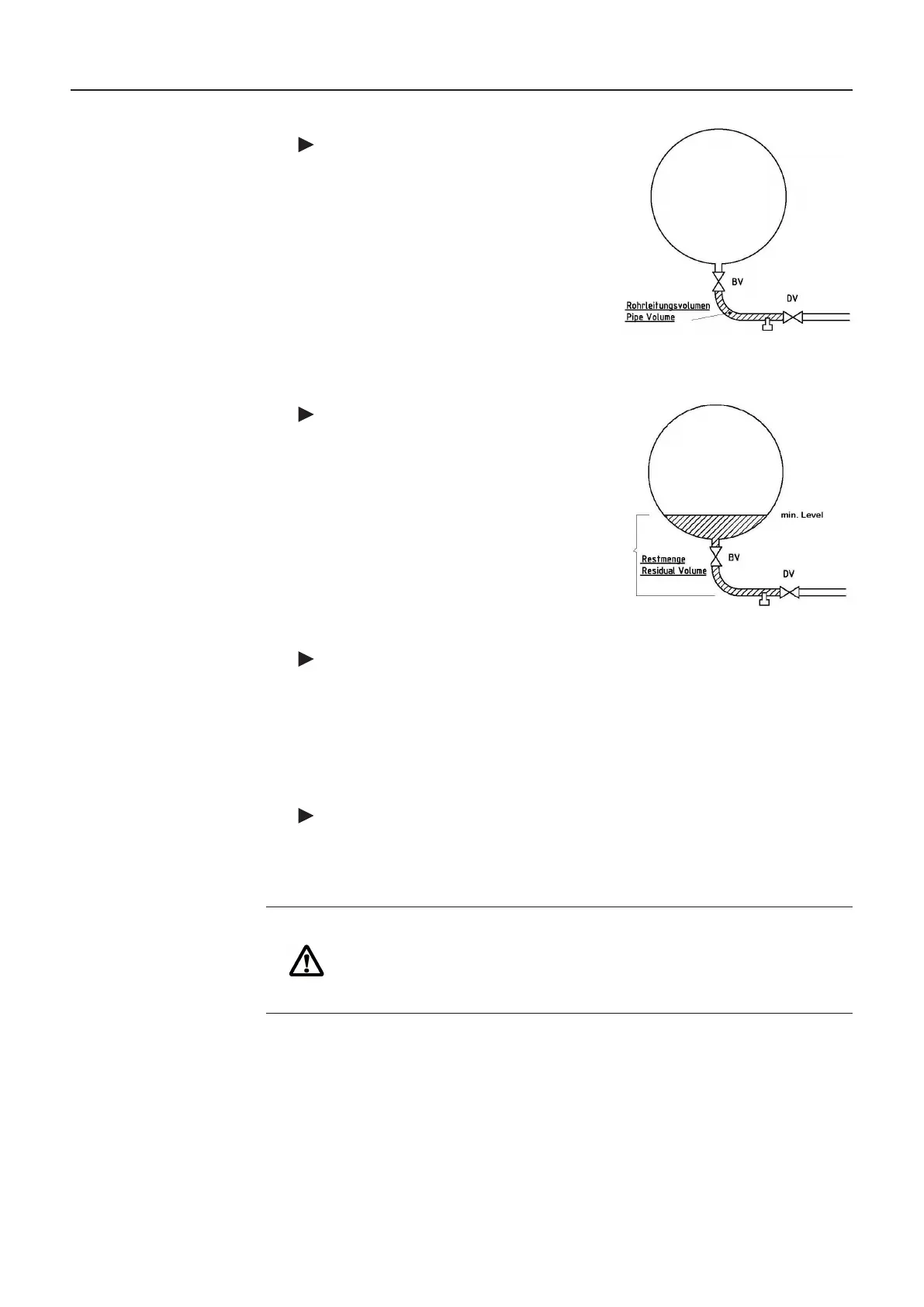

Figure 42: Pipe Volume
3132133 – Residual Volume
The entire residual volume that can no
longer be measured by the level sensor
(including the pipe volume) is entered
here. This parameter is entered
automatically during the data
transmission from the calibration
system to the MultiLevel. As a rule
it no longer needs to be changed
by hand.
mL = 1/1000L
Figure 43: Residual Volume
3132134 – Float MIN
height.
1/1000 mm
40000 μm = 40mm
(Deviations permitted only in special cases and only on consultation with
TechnipFMC)
3132135 – Float MAX
the pump when the value is exceeded. The value must be determined manually
before calibration.
ATTENTION:
• The value is valid only for the compartment that is being calibrated and not
for compartments that serve as storage tanks during calibration!
• The value is of no importance during operation and does not replace any
loading screen, if no calibration has been performed yet and height values are
displayed.
MultiLevel Instruction Manual MENU structure
