MultiLevel Instruction Manual MENU structure

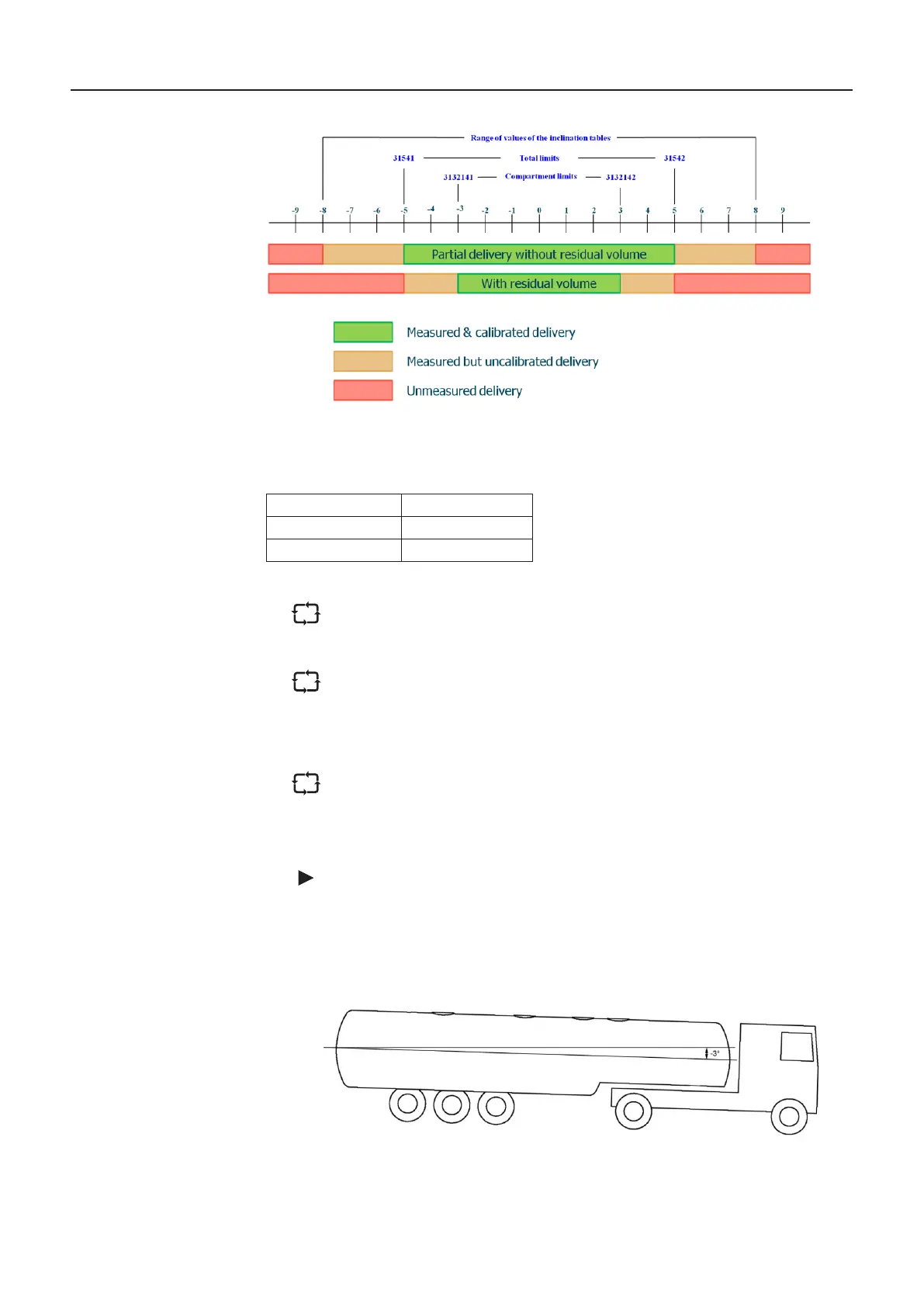

Figure 44: Inclination Limits
The following parameters are set here by way of example:
We recommend setting the ‘favorable’ compartment-dependent inclination
limits, with which the residual volume delivery always works, to the same value
Rough estimations have shown that relatively small residual volumes remain in
the compartments, even if the vehicle deviates by 1° to 1.5° from a favorable
alignment. TechnipFMC therefore recommends setting the residual volume de-
livery to 1° to 1.5° from the ideal drain direction in order to avoid problems with
The transverse inclination limits can normally be set to the vehicle-dependent
-
ery of the residues.
3132141 – Min. Pitch
Setting for the minimum pitch. If this value is undershot, the delivery is
uncalibrated when the wet leg sensor runs dry.
(Vehicle lower at the front ==> setting is normally suitable for a rear
compartment!)
Figure 45: Tank truck inclined negatively in a longitudinal direction by -3,0°
value in ° (degrees)
Compartment Vehicle
Min. pitch: -3 Min. pitch: -5
Min. pitch: +3 Min. pitch: +5
To Next Page
