Technogym Step 600 XTPRO - Wiring Diagram with Coded Receiver

STEP 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 2.7

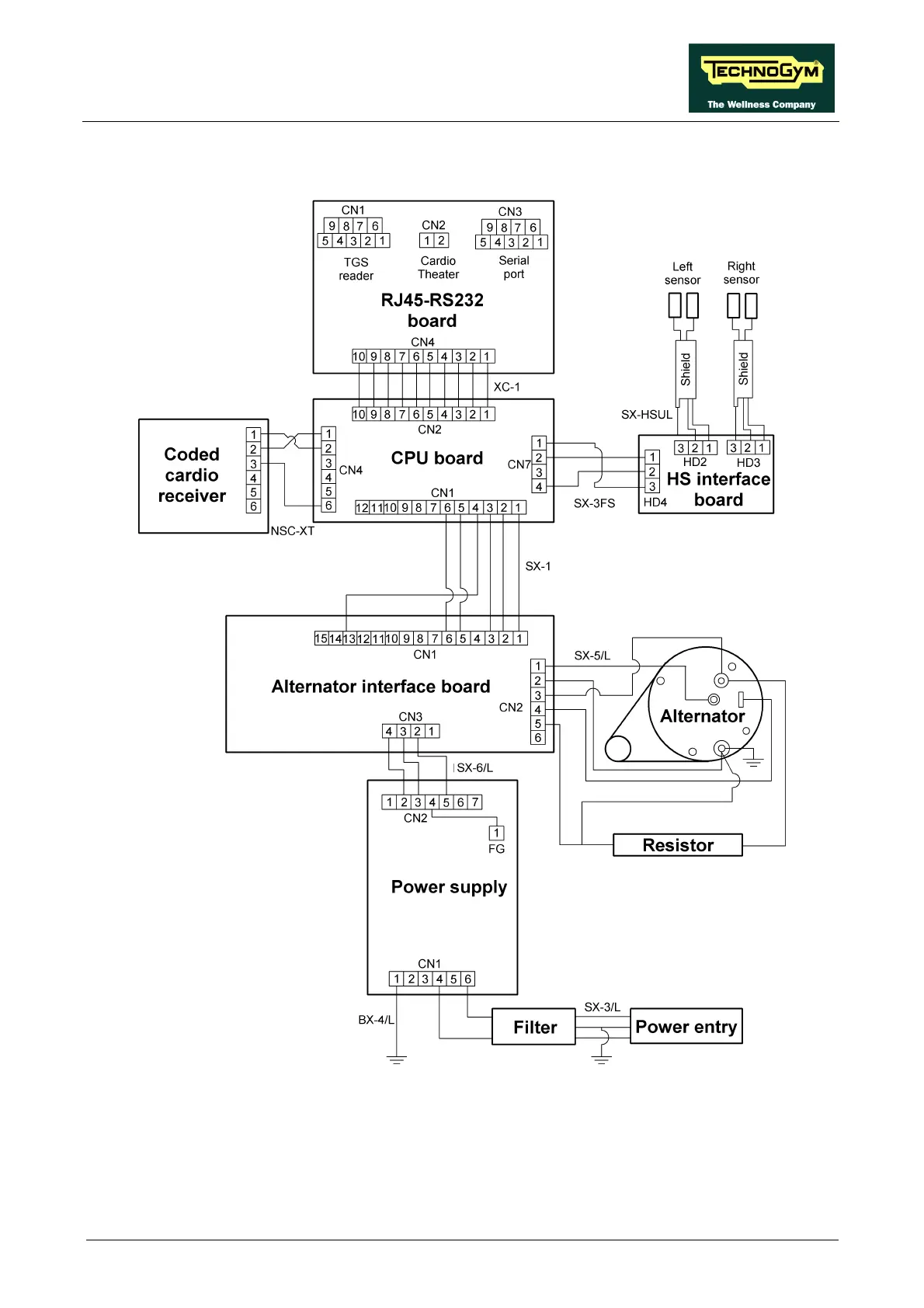

2.6. WIRING DIAGRAM WITH CODED RECEIVER
The only difference compared to the model with non-coded receiver is the NSC-XT cable between
the CPU board and the coded receiver, which is described below:
