STEP 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.21
7.19. DISASSEMBLING THE PRIMARY SHAFT - SECONDARY
SHAFT CHAIN

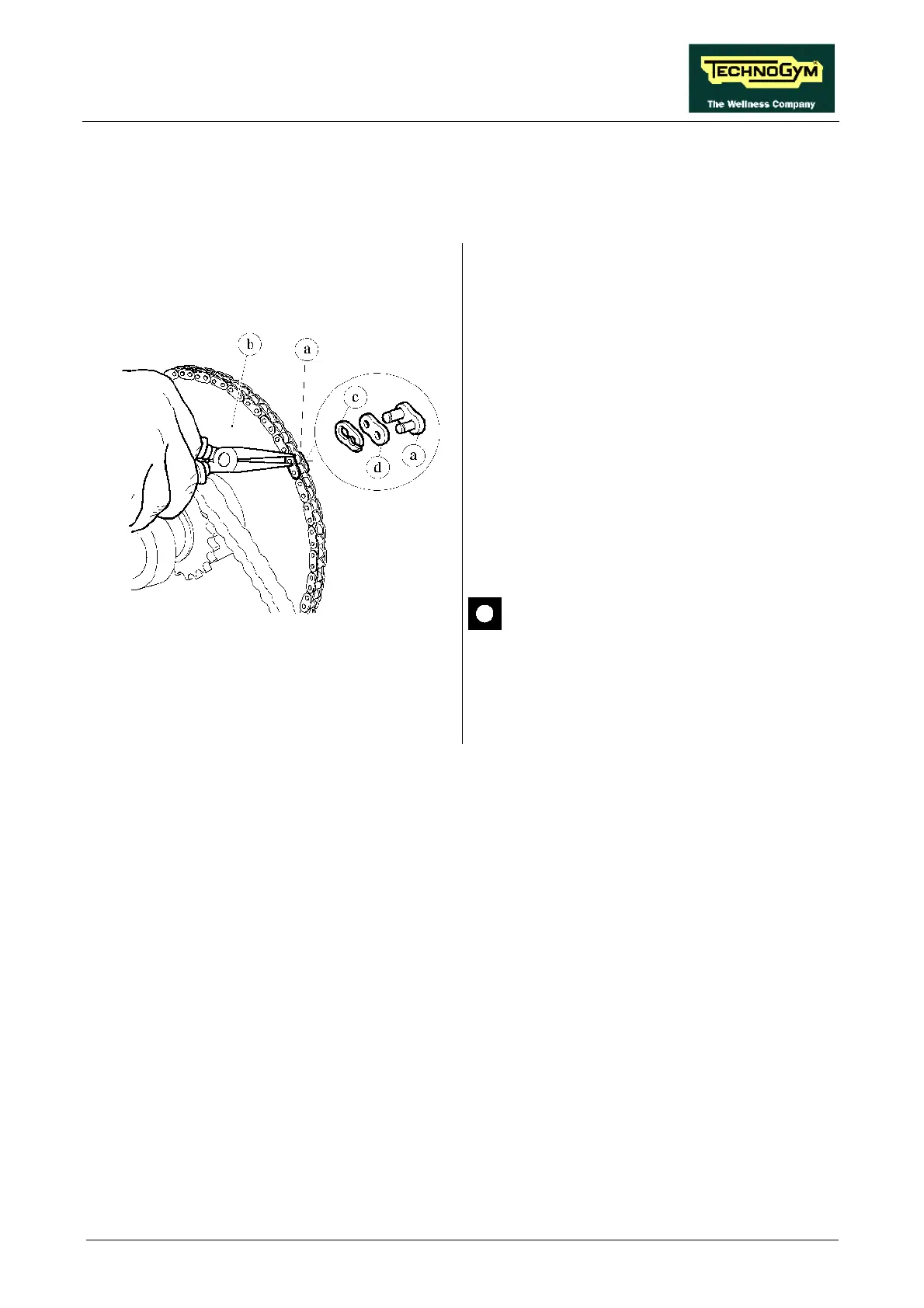

Figure 7.19-1
Carry out the procedure described in paragraph
7.8. “Disassembling the frame guard”.
1. Turn the CHAIN until the connecting link a
is positioned on the sprocket wheel of the
primary shaft b.
2. Remove the clip c from the link using the
special pliers.
3. Remove the connecting plate d.
4. Open the connecting link a.
5. Remove the CHAIN.
To reassemble the CHAIN, carry out the above
steps in reverse order.
After completing the procedure, adjust
the alignment and tension of the
PRIMARY SHAFT - SECONDARY
SHAFT CHAIN as described in
paragraphs 8.3. and 8.4. .
