7.18. DISASSEMBLING THE LEVER FRAME

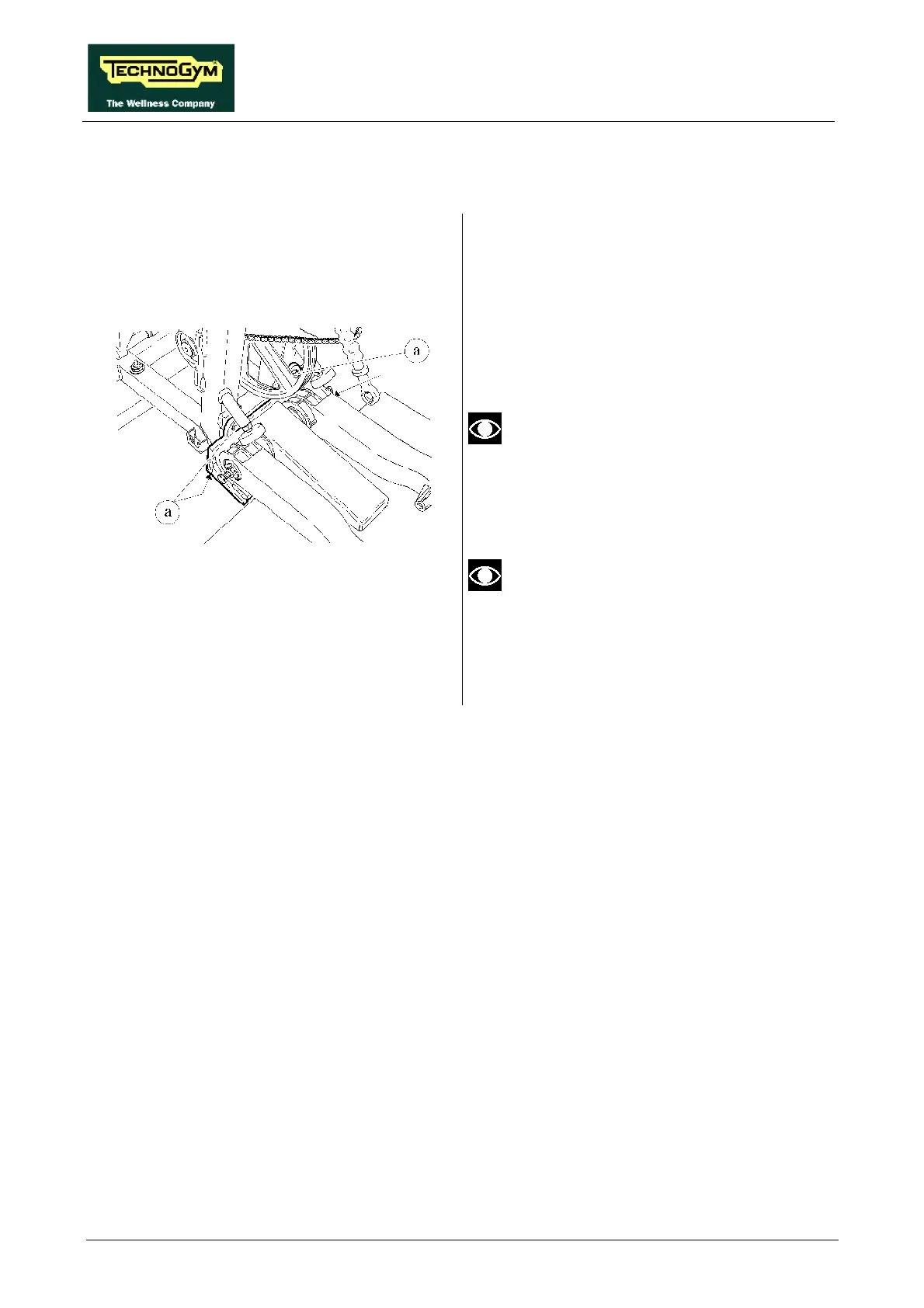

Figure 7.18-1
Carry out the procedure described in paragraph
7.13. “Disassembling the pedal spring” up to the
step releasing the chain from the levers (step 3) .
1. Unscrew the 4 screws a fixing the LEVER
FRAME to the machine frame, using a 17-
mm wrench.
Overturn the machine on one side in
order to remove the 2 screws
underneath.
2. Remove the LEVER FRAME.
The rear base of the LEVER FRAME is
attached.
To reassemble the LEVER FRAME, carry out
the above steps in reverse order.
