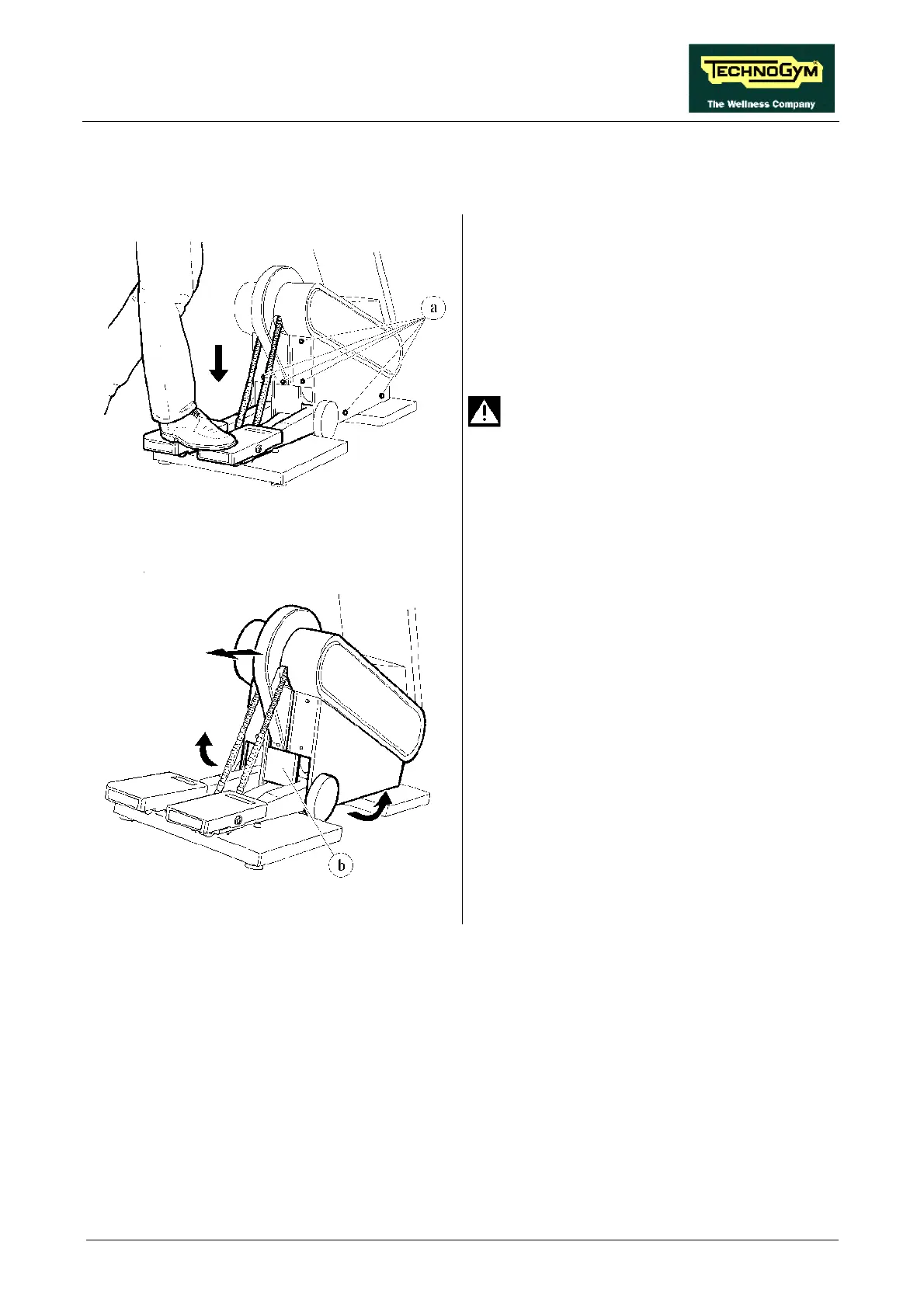

7.8. DISASSEMBLING THE FRAME GUARD
Figure 7.8-1
1. Turn off the machine and disconnect the
mains lead from the wall output.
2. Step on the pedals to push them both to the
ground, and secure them in the all-down
position.
The pedal spring is loaded in this
position. Therefore, make sure that the
pedals have been firmly secured.
3. Unscrew the 9 screws a fixing the FRAME
GUARD, using a large Phillips screwdriver.
Figure 7.8-2
4. Push the sides slightly outward to remove the
FRAME GUARD.
5. Remove the protection plate b.
To reassemble the FRAME GUARD and the
protection plate, carry out the above steps in
reverse order.
