STEP 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 11.5

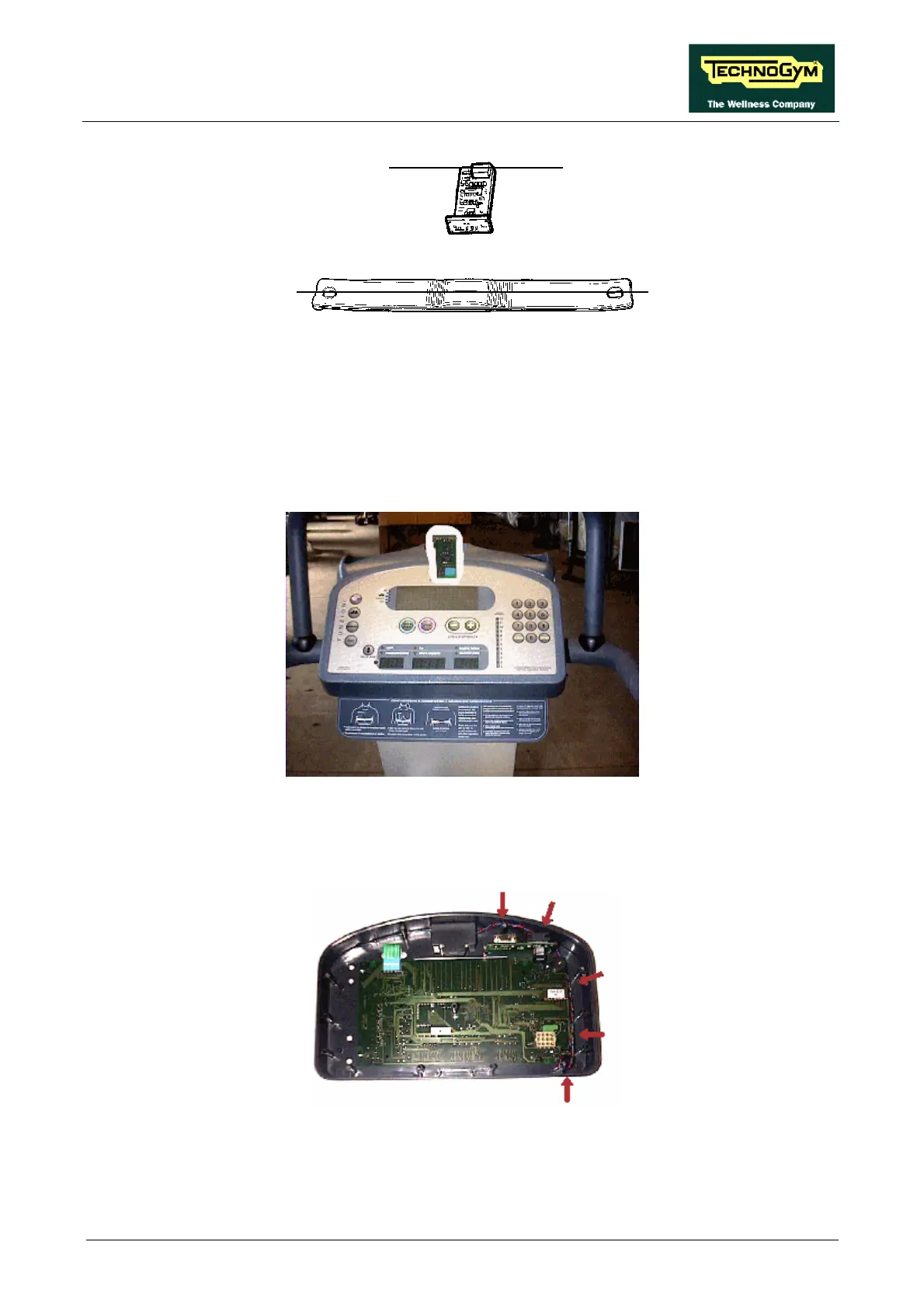

Figure 11.1-2
Please note that even small departures from the above specifications may considerably impair
the accuracy of reception.
The optimal configuration is therefore that shown in the figure below:
Figure 11.1-3
11.1.6. ROUTING OF CABLES
Particular care must be taken in the routing of cables to prevent interference with the receiver coil.
Figure 11.1-4
