7.10. DISASSEMBLING THE SIDE HANDLEBARS

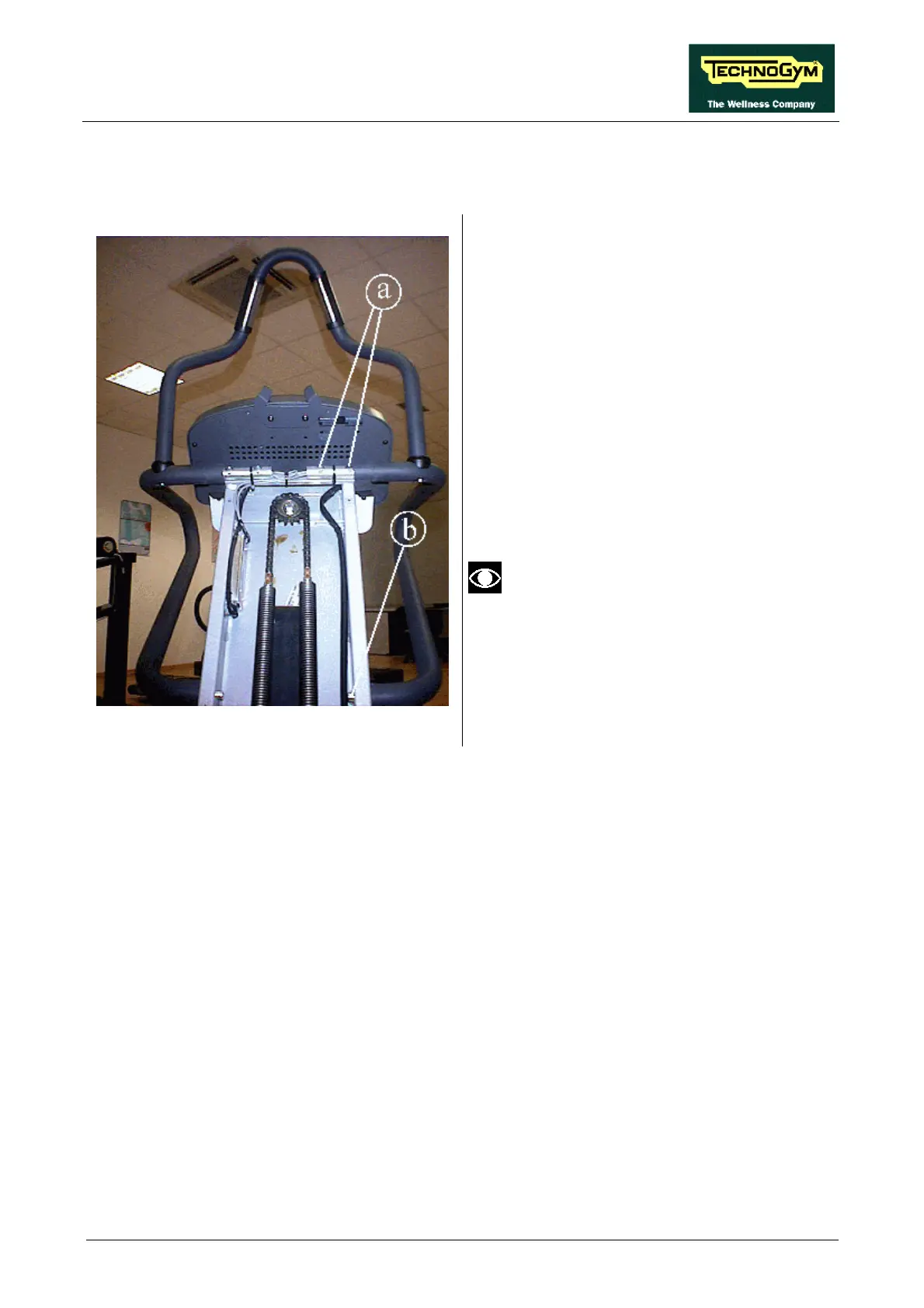

Figure 7.10-1
Carry out the procedure described in paragraph
7.9. “Disassembling the center handlebar”
For each HANDLEBAR:
1. Unscrew the two upper fixing screws b of the
SIDE HANDLEBAR using a 6-mm hex T
wrench.
2. Unscrew the lower fixing screw c of the
SIDE HANDLEBAR using a 6-mm hex T
wrench.
3. Remove the SIDE HANDLEBAR.
WARNING: when carrying out these
operations, be careful not to damage the
hand sensor cables.
To reassemble the SIDE HANDLEBARS, carry
out the above steps in reverse order.
