7.14. DISASSEMBLING THE PEDAL JOINT

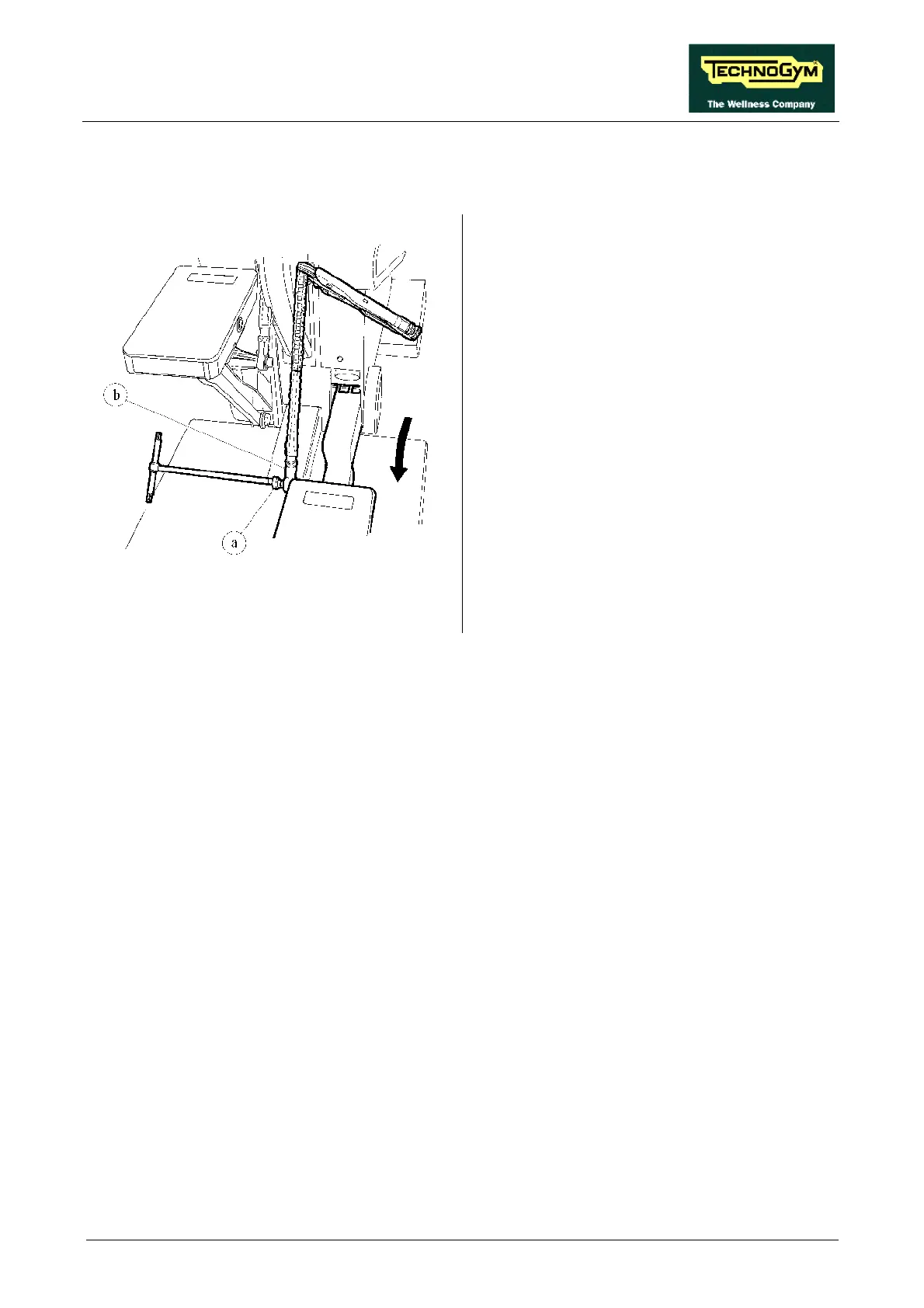

Figure 7.14-1
Turn off the machine and unplug the mains lead
from the wall output.
Working from both sides:
1. Lower the pedal to the midway point of its
range of travel.
2. Grip the chain with the gripper pliers.
3. Clamp the pliers on the frame guard to keep
the chain slack.
4. Unscrew the screw a fixing the PEDAL
JOINT b to the chain using an 8-mm hex T
wrench.
5. Manually unscrew the PEDAL JOINT.
To reassemble the PEDAL JOINT, carry out the
above steps in reverse order.
