STEP 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.28
7.24. DISASSEMBLING THE ALTERNATOR

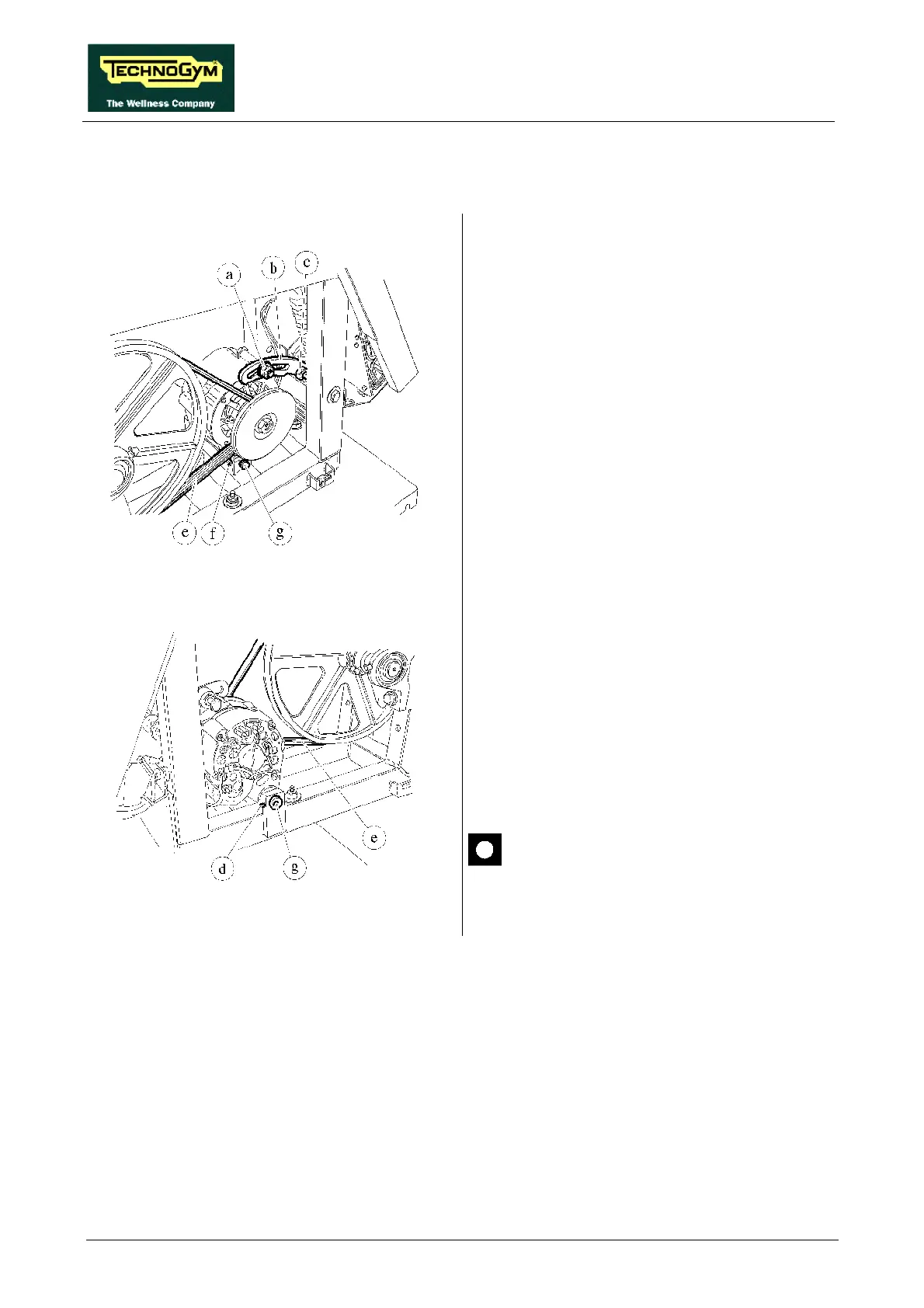

Figure 7.24-1
Carry out the procedure described in paragraph
7.8. “Disassembling the frame guard”.
1. Disconnect the ALTERNATOR cables.
2. Back off the nut a of the belt tension rod b
using a 17-mm wrench.
3. Unscrew the nut c fixing the belt tension rod
b to the machine frame using a 17-mm
wrench.
4. Back off dowel d with a 4-mm hex T
wrench.
5. Move the ALTERNATOR in order to
remove belt e.
6. Back off the lock nut f of the alternator pivot
g using a 19-mm wrench.
Figure 7.24-2
7. Unscrew the alternator pivot g using an 8-
mm hex wrench, while at the same time
backing off the lock nut f to the point of
disassembly.
8. Remove the ALTERNATOR.
To reassemble the ALTERNATOR, carry out the
above steps in reverse order.
After completing the operation, adjust
the alignment and tension of the belt as
described in paragraphs 8.1. and 8.2. .
