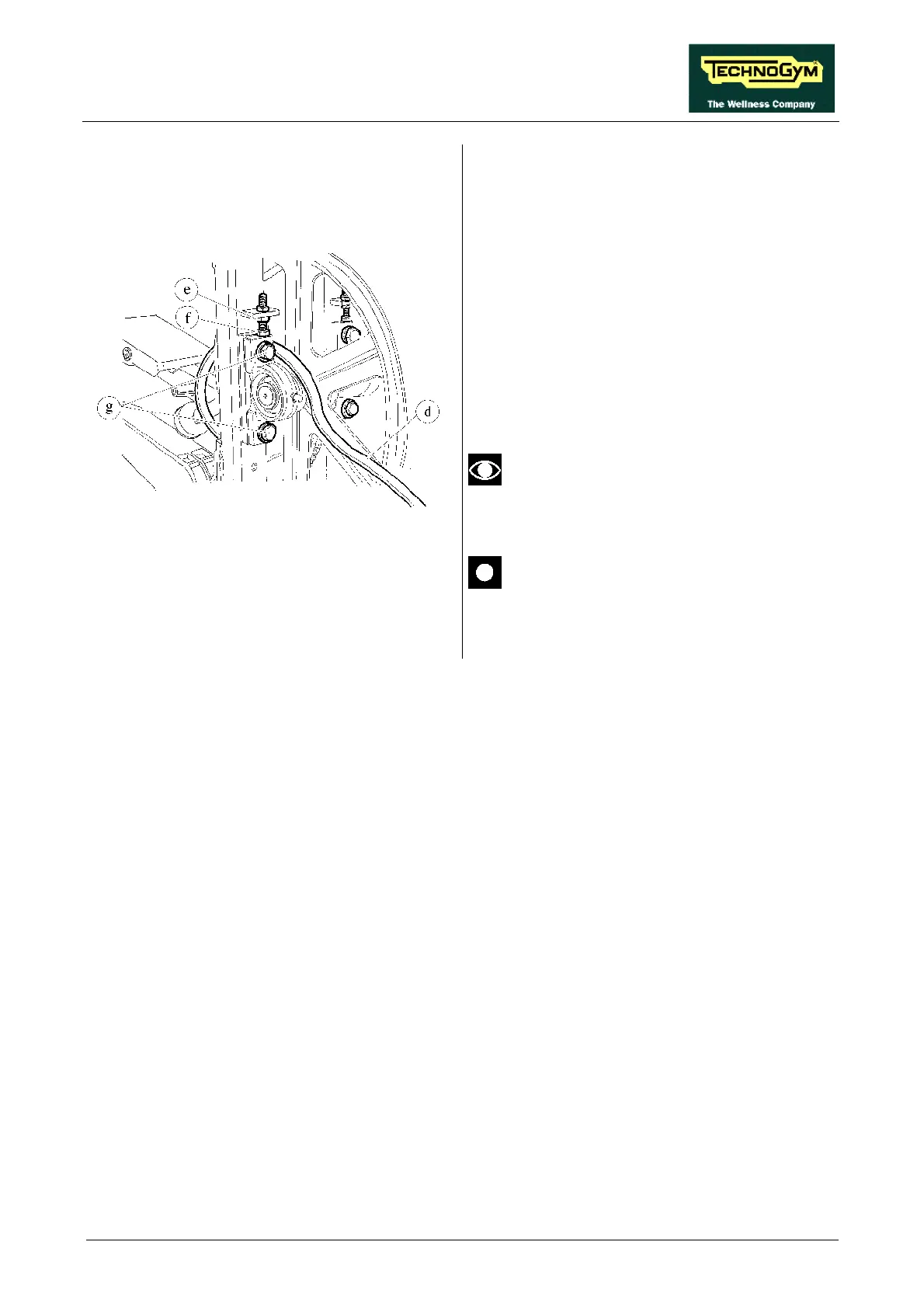

Figure 7.23-3
4. Remove the BELT d from the pulley on the
side opposite the chain.
5. Back off nut e and the adjusting screw f of
the secondary shaft using a 13-mm wrench.
6. Unscrew the 2 screws g fixing the secondary
shaft to the frame using a 17-mm wrench.
7. Remove the BELT through the space that is
created between the disassembled secondary
shaft and the frame.
To reassemble the BELT, carry out the above
steps in reverse order.
If the space created is too small for the
BELT to pass through, disassemble the
primary shaft - secondary shaft chain.
After completing the procedure, adjust
the alignment and tension of the belt as
described in paragraphs 8.1. and 8.2. .
