7.17. DISASSEMBLING THE LEVERS

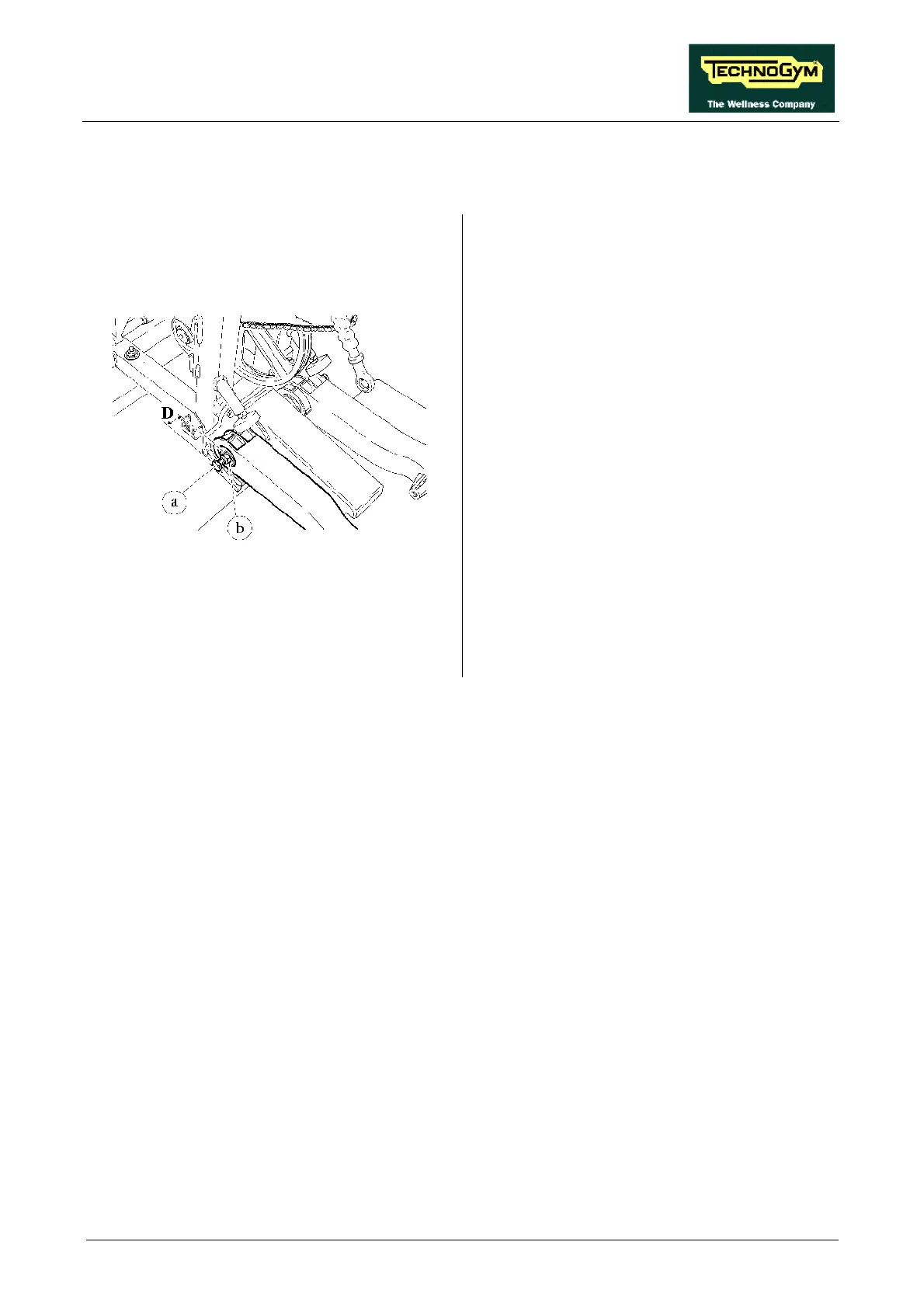

Figure 7.17-1
Carry out the procedure described in paragraphs
7.13. “Disassembling the pedal spring” up to the
step releasing the chain from the levers (step 3)
and 7.15. “Disassembling the pedals and the
pedal group”.
Working from both sides:
1. Unscrew the screw a fixing the LEVER to
the machine frame using a 17-mm wrench.
2. Remove the LEVER.
To reassemble the LEVERS:
1. Insert the LEVER in the pivot.
2. Insert the screw a and adjust the nut b so that
the distance D is 25 - 26 mm.
3. Lock down the nut b with the 17-mm
wrench.
