STEP 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.13

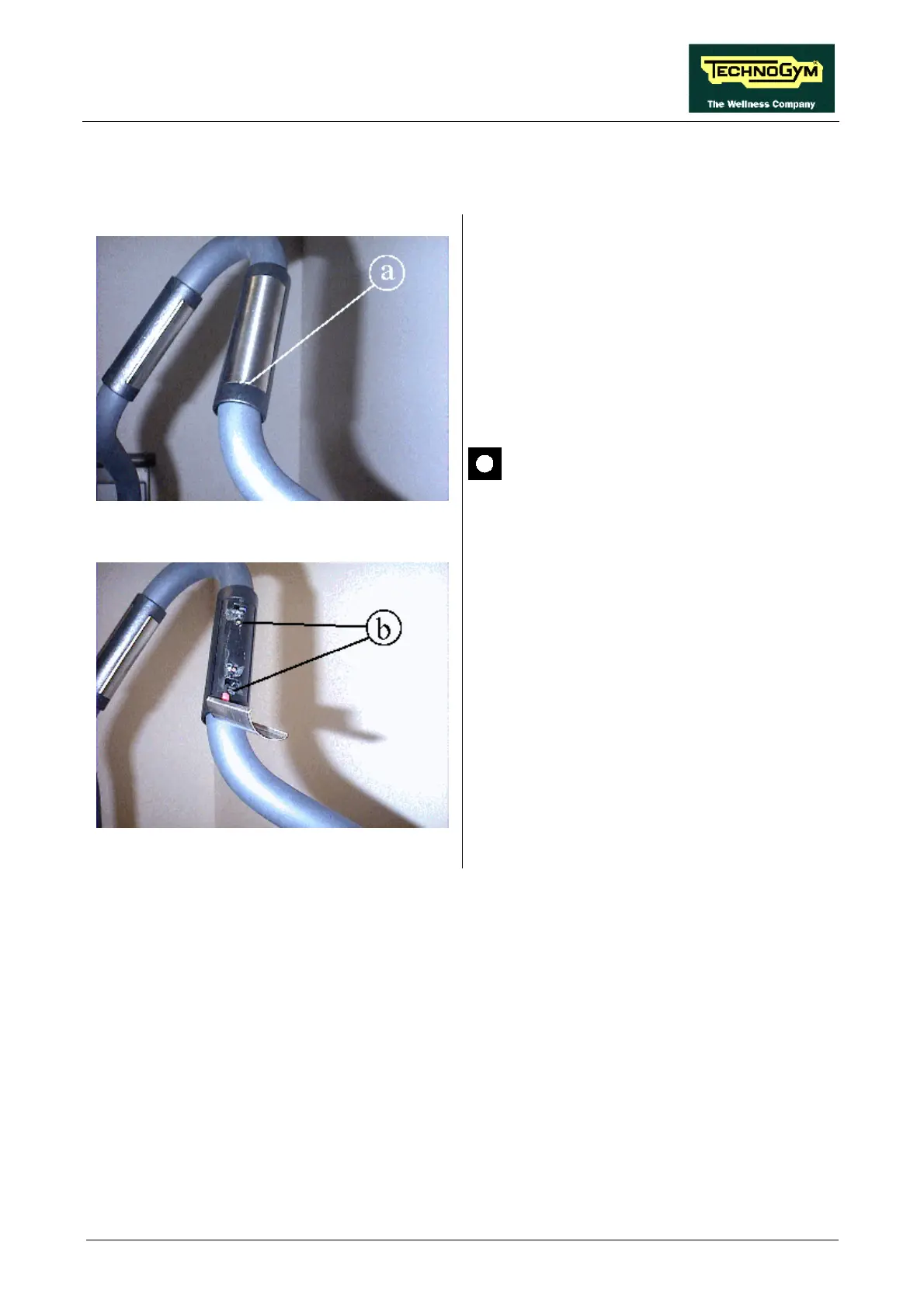

7.12. DISASSEMBLING THE HAND SENSORS
Figure 7.12-1
1. Turn off the machine and unplug the mains
lead from the wall output.
For each SENSOR:
2. Use a pointed tool (such as a screwdriver) to
leverage inside the SENSOR slot a.
3. Lift the upper SENSOR.
The sensors are attached to the
handlebar with adhesive tape.
Figure 7.12-2
4. Back off the 2 screws b using a small Phillips
screwdriver.
5. Allow the lower SENSOR to drop.
6. To disconnect the SENSORS, disconnect the
Fastons of their fixing cables.
To reassemble the SENSORS, carry out the
above steps in reverse order.
