7.9. DISASSEMBLING THE CENTER HANDLEBAR

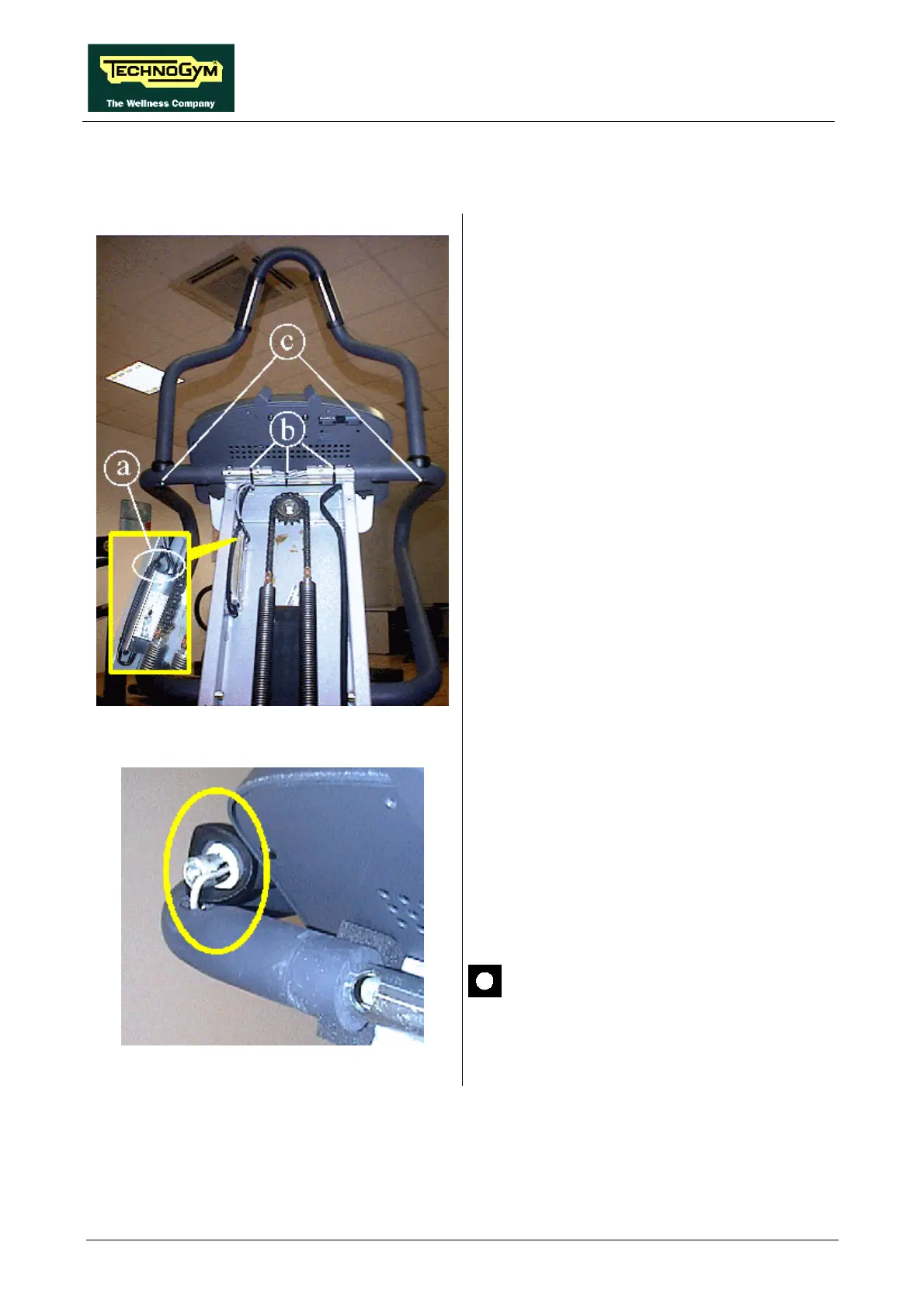

Figure 7.9-1
Carry out the procedure described in paragraph
7.6. “Disassembling the upright guard”.
1. Unplug connectors a of the sensor cables.
2. Cut the locking strips b of the sensor cables.
3. Unscrew the 2 screws c using an 6-mm hex T
wrench.
4. Remove the CENTER HANDLEBAR being
careful to pull out the sensor cables through
the center handlebar.
Figure 7.9-2
To reassemble the CENTER HANDLEBAR,
carry out the above steps in reverse order, being
careful to:
• position the sensor cables inside the opening,
as shown in the figure at left;
• ensure that screws c do not pinch the cables.
To facilitate this operation, keep the
cables taut by pulling on the end which
comes out of the side handlebars.
