STEP 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.6
7.5. DISASSEMBLING THE CARDIO RECEIVER

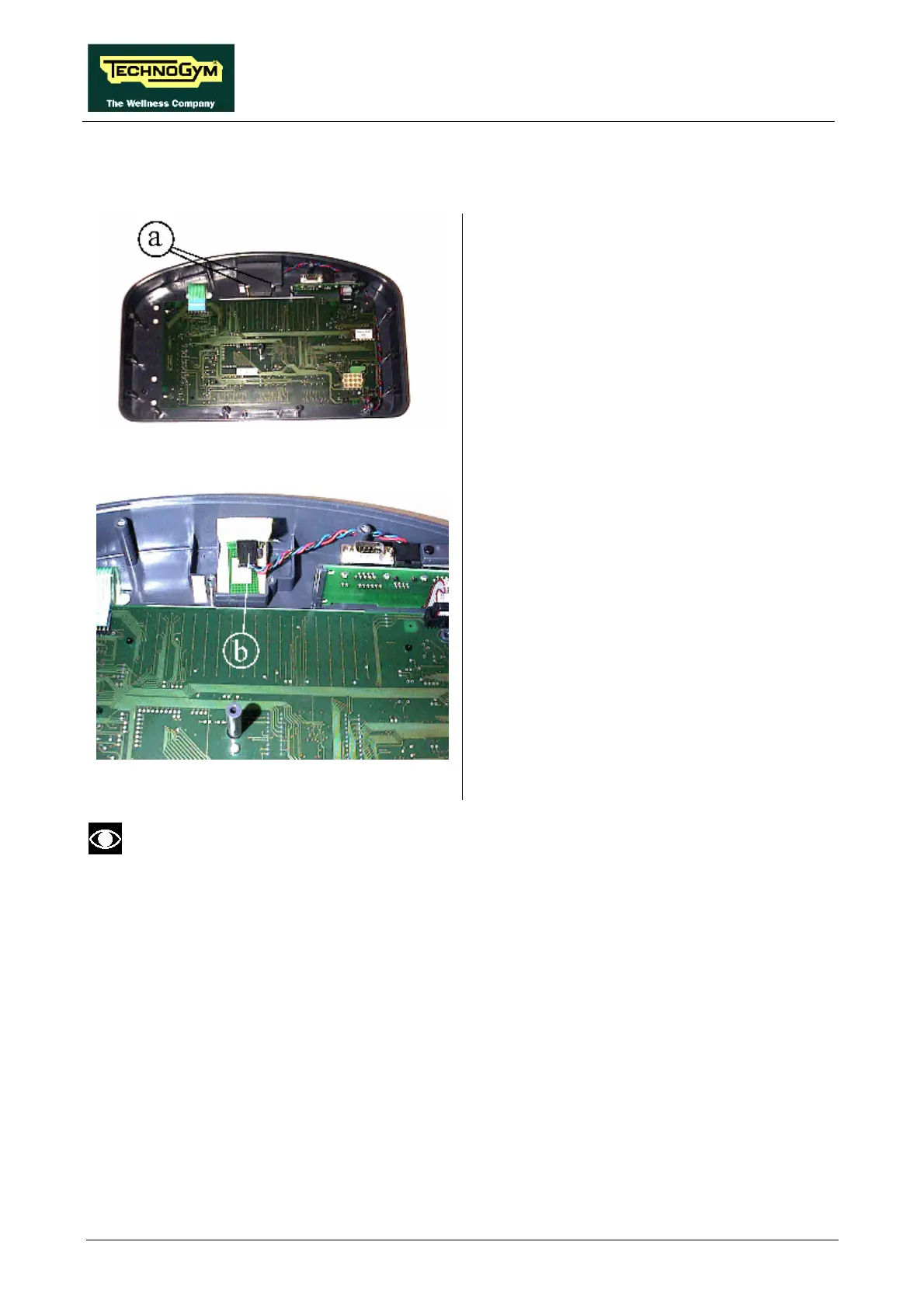

Figure 7.5-1
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
With the display on a work bench:
1. Unscrew the 2 screws a using a small
Phillips screwdriver.
2. Open the cover.
Figure 7.5-2
3. Disconnect connector b.
4. Remove the RECEIVER.
To reassemble the RECEIVER, carry out the
above steps in reverse order.
WARNING: route the cables as described in paragraph 11.1. “Technical notes on cardio
receivers”.
