7.23. DISASSEMBLING THE BELT

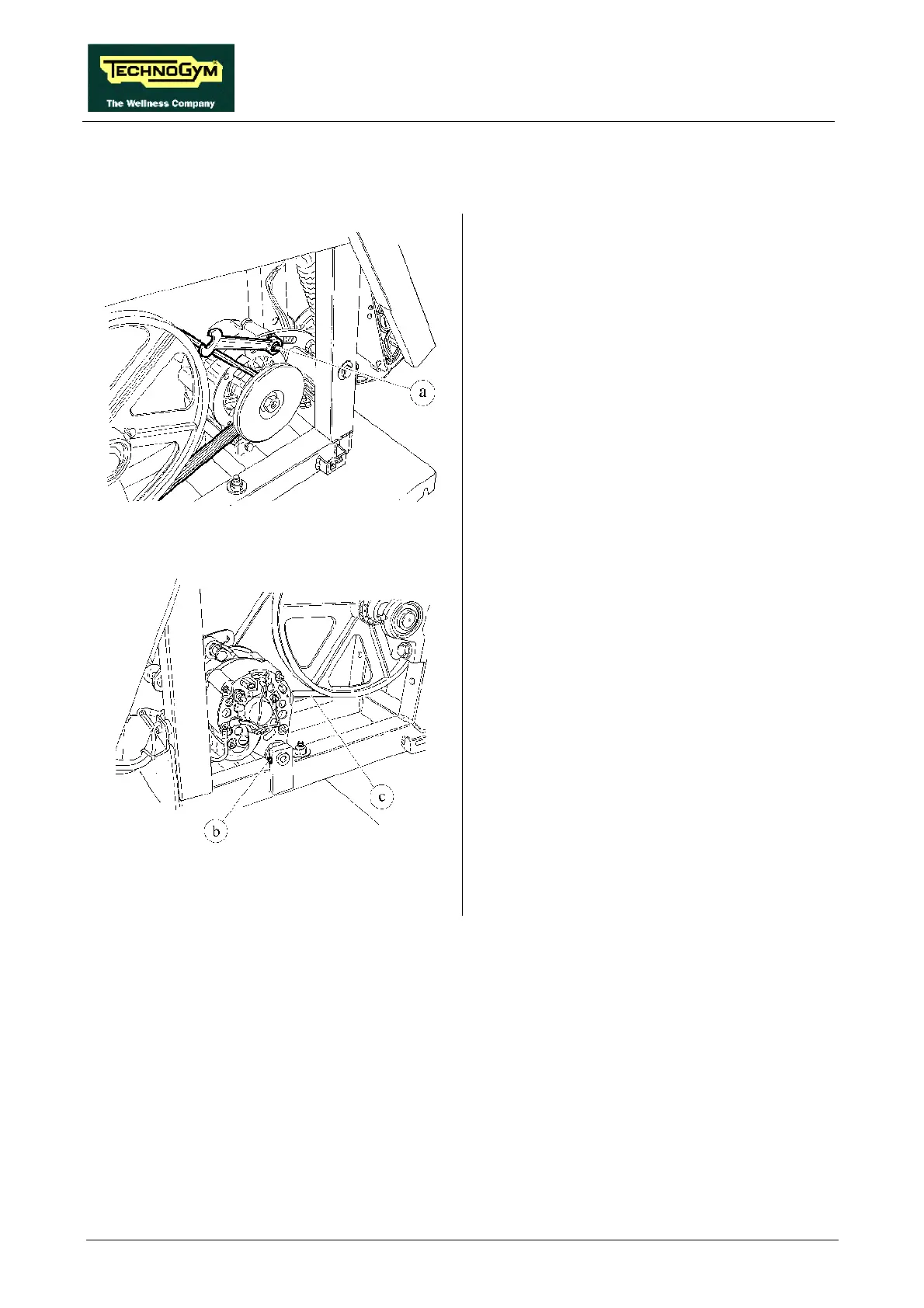

Figure 7.23-1
Carry out the procedure described in paragraph
7.8. “Disassembling the frame guard”.
1. Back off the nut a of the belt tension rod
using a 17-mm wrench.
Figure 7.23-2
2. Back off the dowel b using a 4-mm hex T
wrench.
3. Move the alternator toward the pulley to
remove the BELT c from the alternator
flywheel.
Continued on the following page →
