STEP 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 8.2

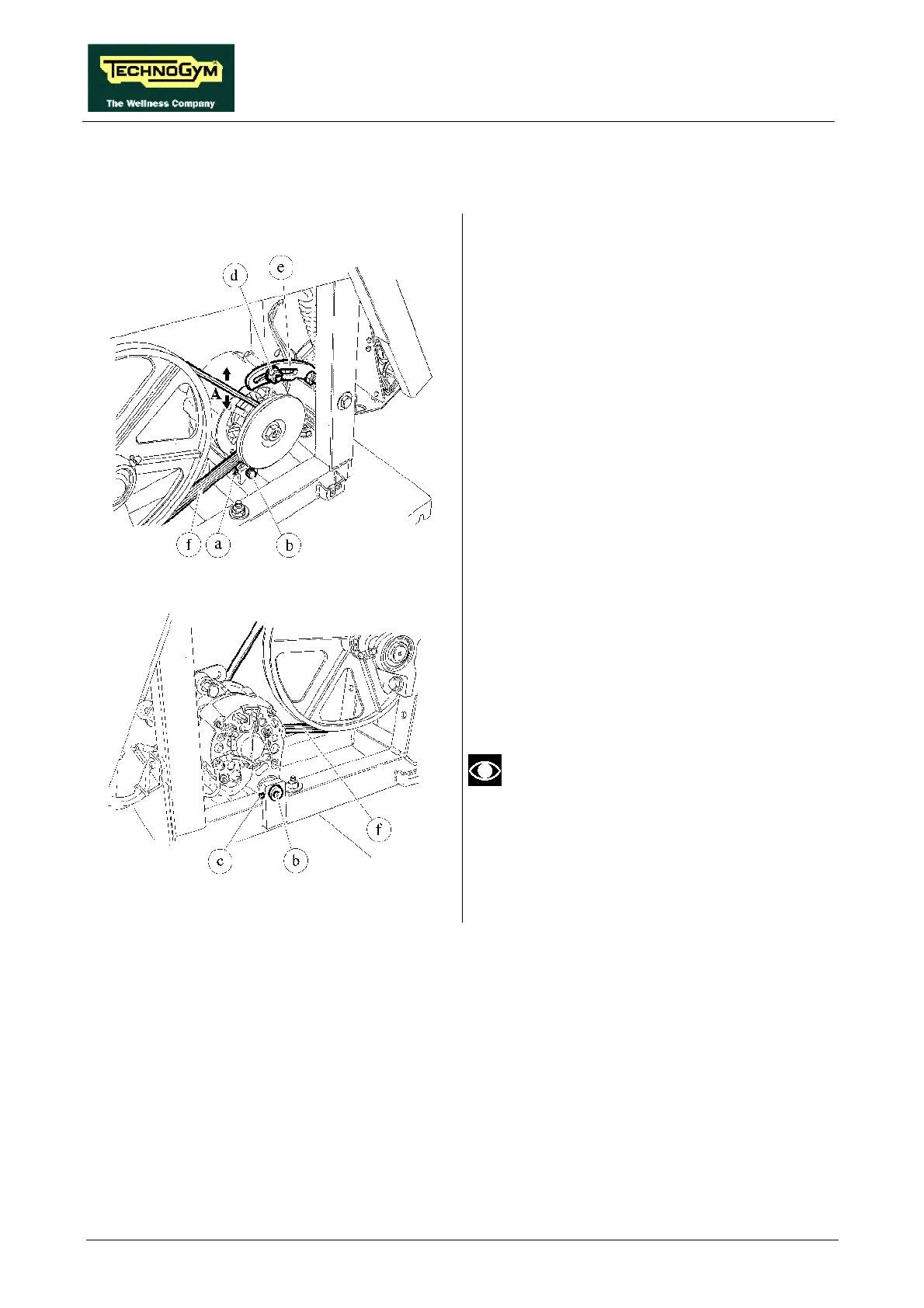

8.2. BELT TENSION
Figure 8.2-1
Carry out the procedure described in paragraph
7.8. “Disassembling the frame guard”.
1. Back off the lock nut a of alternator pivot b
using a 19-mm wrench.
2. Back off the dowel c of the alternator pivot.
3. Back off the nut d of the belt tension rod e
using a 17-mm wrench.
4. Rotate the alternator on its pivot in such a
way that, at point A, the belt f has a vertical
play of approximately 1 cm.
Figure 8.2-2
5. After completing the adjustment, lock down
what previously backed off.
After completing this procedure, check
the belt alignment as described in
paragraph 8.1. .
