Technogym Step 600 XTPRO - 7 Disassembly of Components

STEP 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.1
7. DISASSEMBLY OF COMPONENTS
7.1. DISASSEMBLING THE DISPLAY

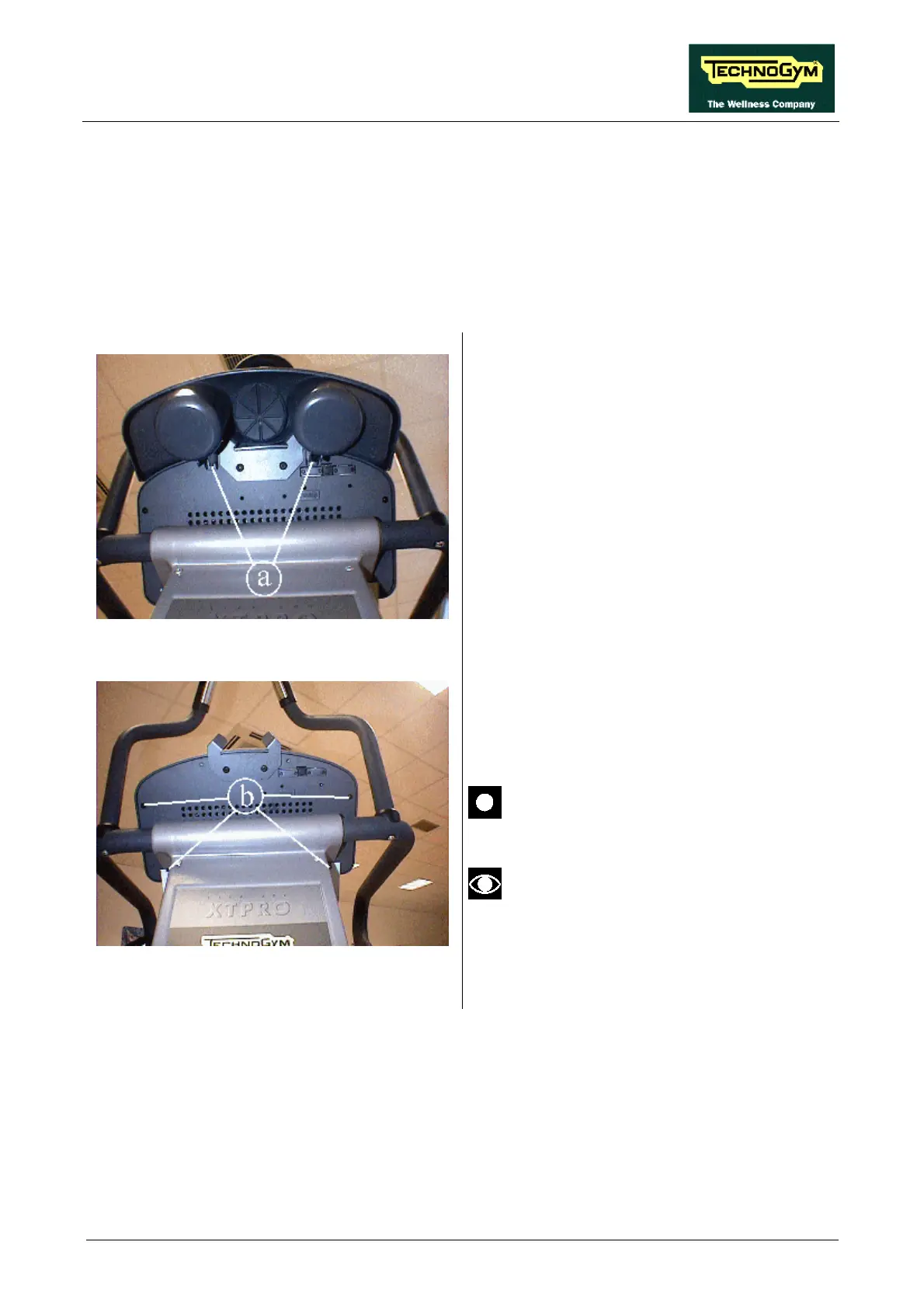

Figure 7.1-1
1. Turn off the machine and unplug the mains
lead from the wall output.
2. Unscrew the 2 screws a using a large Phillips
screwdriver.
3. Remove the tidy rack.
Figure 7.1-2
4. Unscrew the 4 screws b using a large Phillips
screwdriver.
Support the DISPLAY before removing
the last screw.
The 2 lower screws hold the lexan
instruction panel in place.
Continued on the following page →
