6.2. PECTORAL ARM

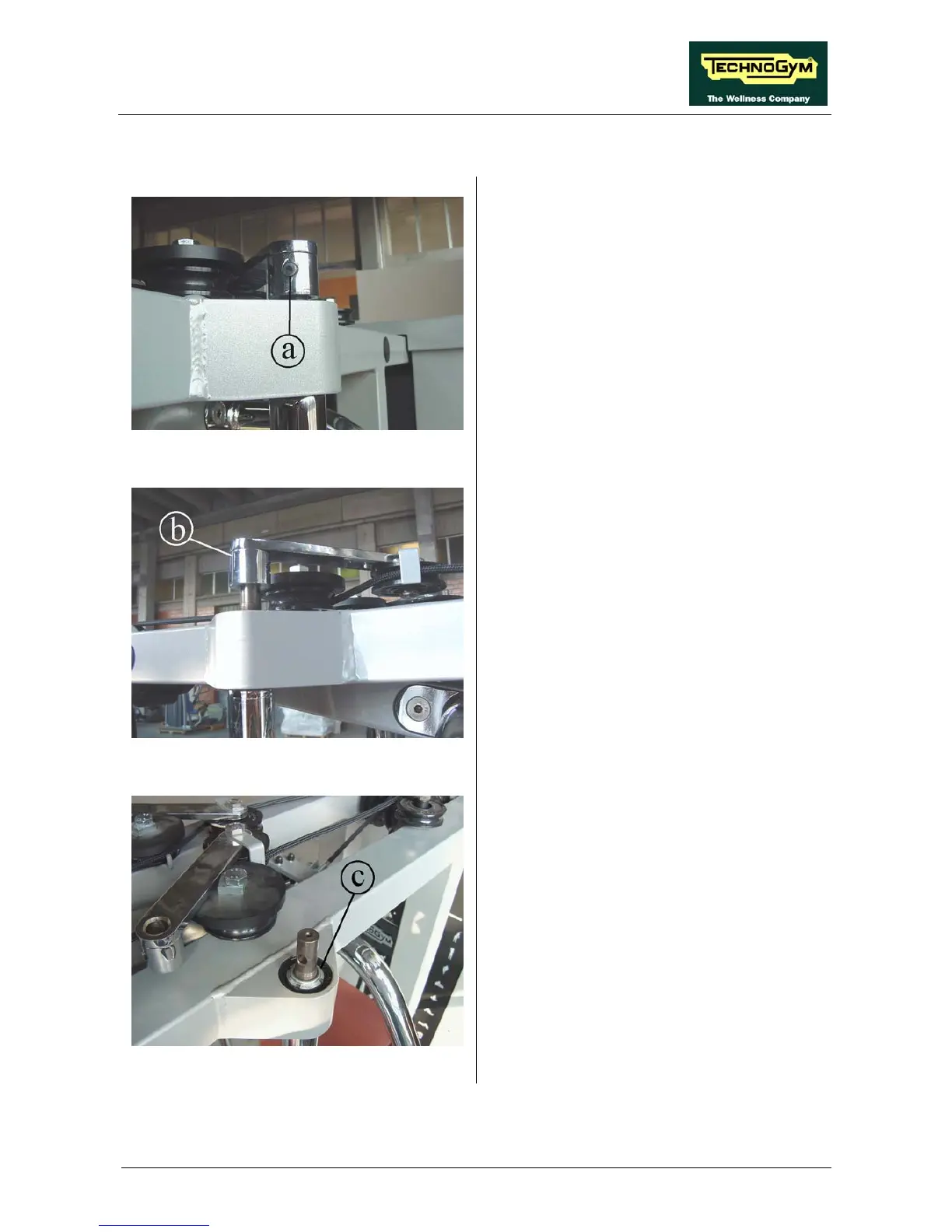

Figure 6.2-1
1. Remove the pin a from the upper part of the
Pectoral arm using a 6-mm pointed tool.
Figure 6.2-2
2. Remove component b from the top.
Figure 6.2-3
3. Using a ringnut spanner, back off the nut c,
taking care with the arm which can now be
pulled out from the bottom.
Page 6.3
