UPS EVO DSP PLUS Modular 49 User’s manual
7 Static Tranfer Switch (STS) Module
The Static Transfer Switch (STS) Module is installed before leaving factory. It provides the Bypass Power when
UPS is in Bypass Mode.
In addition to offering Bypass Power, it includes some Communication Interfaces. For detailed information, please
refer to next section.

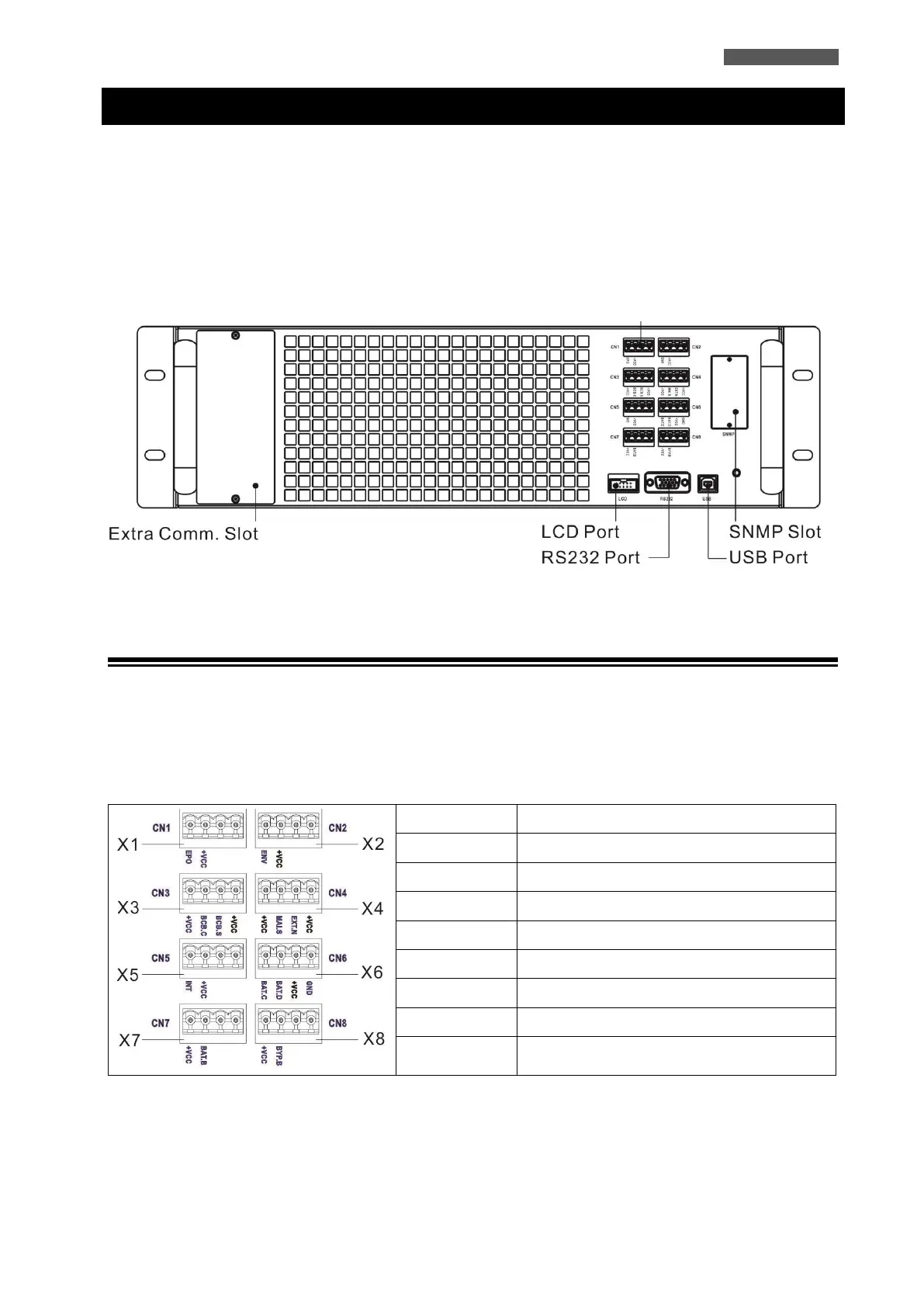

As shown in Figure 7.1, the Static Transfer Switch (STS) Module includes Contact Ports (X1~X8), Extra Comm.
Slot, SNMP Slot, LCD Port and Communication Ports (RS232 Port, USB port) on the front panel.
Figure 7.1 - STS Module
7.1 Interface and Communication
As shown in Figure 7-1, the Static Transfer Switch (STS) Module includes Contact Ports (X1~X8), Extra Comm.
Slot, SNMP Slot and Communication Ports (RS232 Port, USB port) on the front panel.
7.1.1 Contact Ports
Dry Contact No.
Function
X1
Remote EPO input Port
X2
No use
X3
No use
X4
Maintenance Bypass Switch State Port
X5
No use
X6
Battery Cabinet Temperature Detection Port
X7
No use
X8
No use
Figure 7.2 – Contact Ports
Contact Ports
