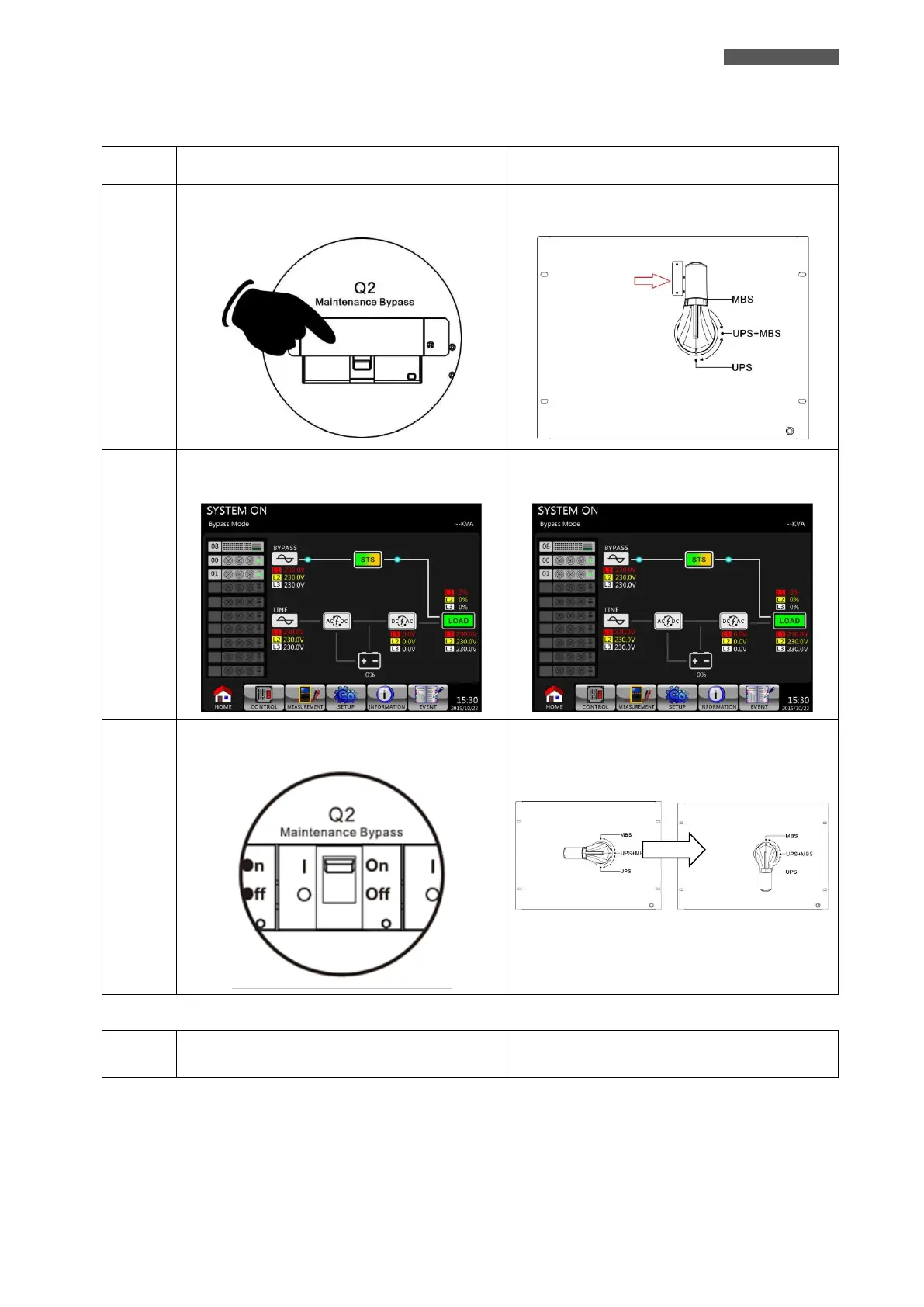

11.4.1 Transfer to Maintenance Bypass
Please follow below steps:
Power: for 80KVA~210KVA cabinet
Power: for 300KVA cabinet
Step 1:
Remove the mechanical lock plate of
Maintenance Bypass Breaker.
Remove the mechanical lock plate of
Maintenance Bypass Switch.
Step 2:
Make sure the UPS operates in Bypass mode as
shown below.
Make sure the UPS operates in Bypass mode as
shown below.
Step 3:
Switch ON the Maintenance Bypass Breaker as
shown below.
Switch the handle toward downsize as shown
below.
Step 4:
Switch OFF the Main Breaker (Q1) as shown
below.
