Operating Instructions
1720/1721
2–5
AUXILIARY CONTROL
1 23 4
57
6
8

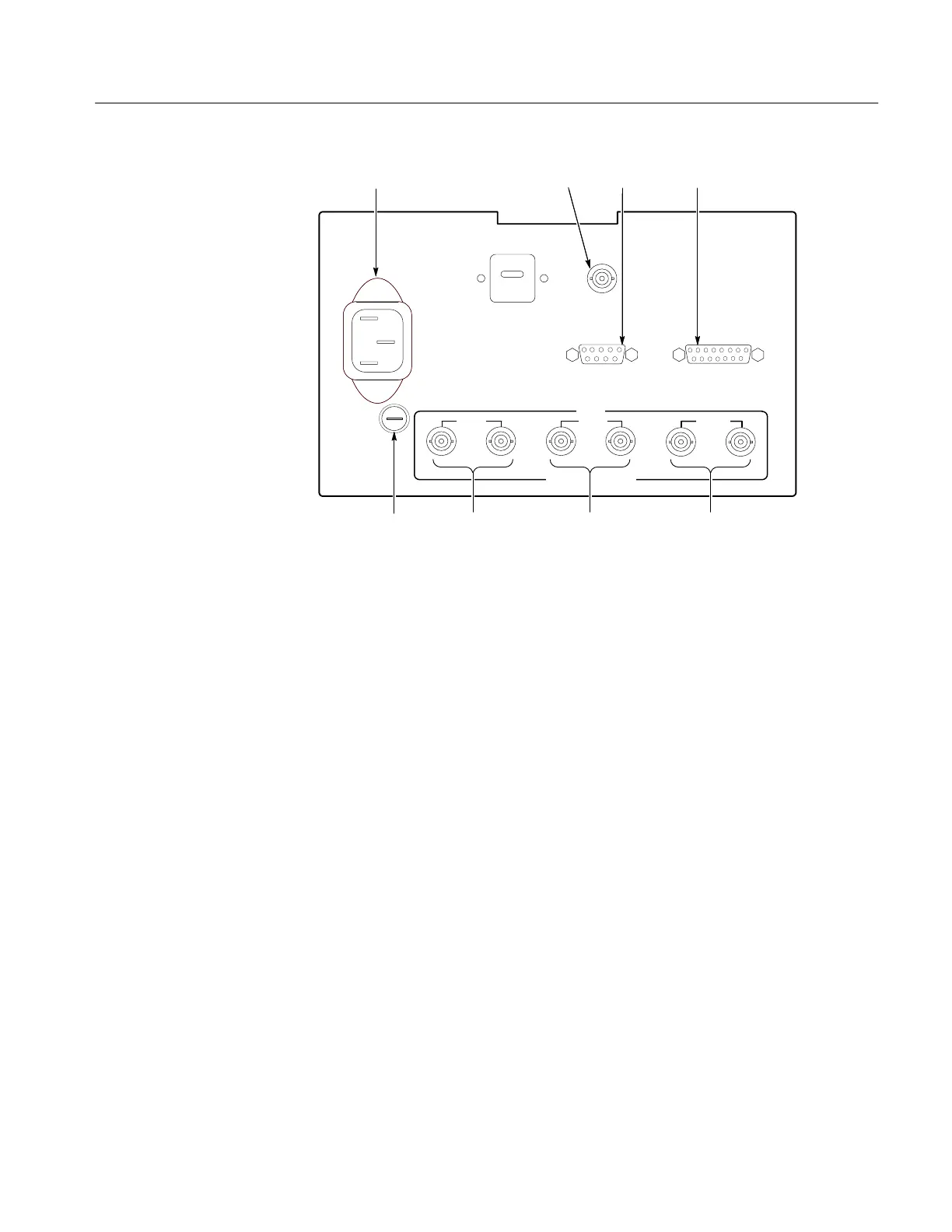

Figure 2-2: 1720/1721 rear panel.
1. AC POWER
A standard ac plug receptacle for the 120 or 220 Vac power mains. Plug is
compatible with any of the three power cord options available for the 1720/1721
Vectorscope.
2. DEMOD OUT
A 75Ω output of the demodulated R-Y signal that can be fed into a companion
1730-Series to provide a horizontal sweep of demodulated video.
3. AUXILIARY
A 9-pin connector used to interface with the 1730-Series. Auxiliary control
consists of a signal line (Line Strobe) and a serial interface. The serial interface
allows the 1720/1721 to operate in conjunction with the 1730-Series Store/Recall
function.
4. XY INPUT
A 15-pin connector that is used for the differential input of a stereo audio signal
that is to be displayed in the XY mode. One set of inputs can be configured for
high gain single-ended input. Internal jumpers must be repositioned for this type
of input. See Section 3 (Installation) for more information.
