Tektronix KEITHLEY 2450-EC User Manual

Models 2450
-EC, 2460-EC, and 2461-EC Potentiostats And Galvanostats User's Manual Section 1:
Introduction
077110402/November 2016 1-7
Make the device connections

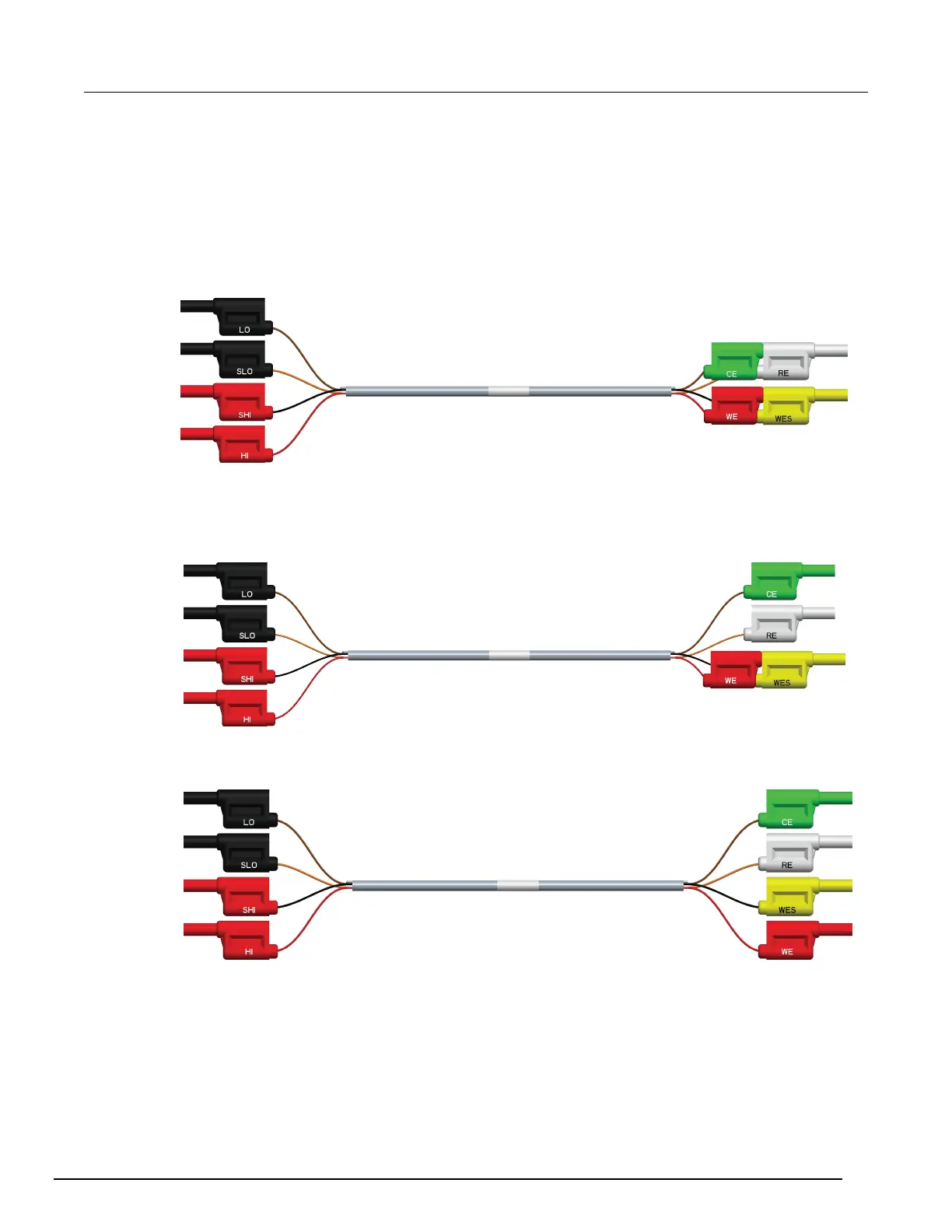

The test cable lets you make connections to test cells with two, three, or four electrodes.
For two-electrode applications, the device-side cable connectors are used in stacked pairs. Connect
the WE and WES pair to the working electrode of your electrochemical cell, and connect the CE and
RE pair to the counter electrode of the cell.
Figure 7: Two-electrode cell testing cable connections
For three-electrode applications, the WE and WES connectors are stacked and attached to the
working electrode. The CE and RE connectors connect to the counter electrode and reference
electrode, respectively.
Figure 8: Three-electrode cell testing cable connections
For four-electrode applications, each device-side cable connector is used separately.
Figure 9: Four-electrode cell testing cable connections
