2: Cyclic Voltammetry Models 2450-EC, 2460-EC, and 2461-EC Potentiostats And Galvanostats
User's Manual
2-8 077110402/November 2016

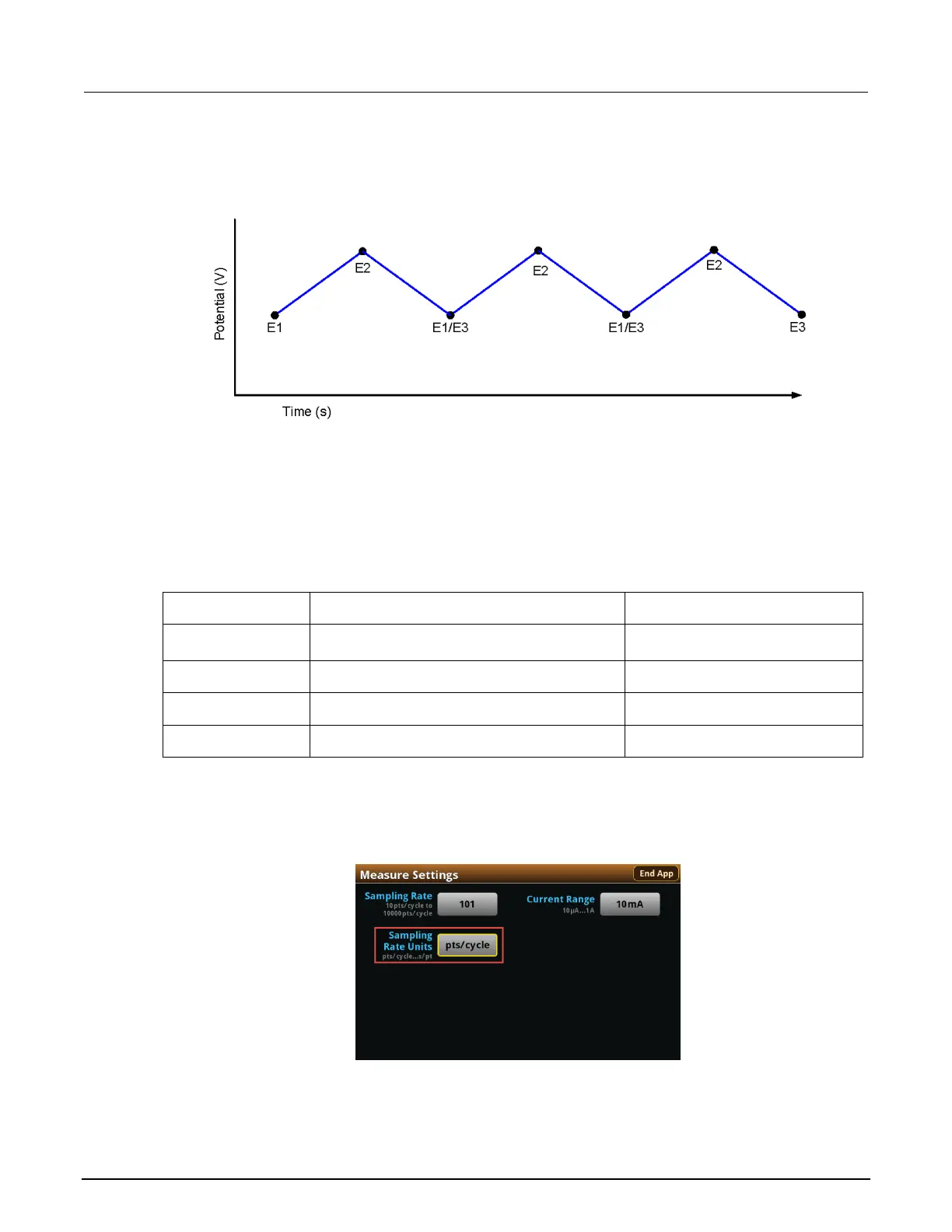

The following figure shows an example of a potential versus time graph showing three cycles of a
three-vertex voltage sweep.
Figure 23: Example potential versus time graph
Select the Sampling Rate Units, Sampling Rate, and Current Range
Specify how often to make measurements during the scan by selecting one of the sampling rate units
shown in the following table and setting a value for the sampling rate. The acquired measurements
are stored in the active buffer of the instrument, cvBuffer. The buffer can hold a maximum of
100,000 readings.
The following table describes the available interval units and accompanying range of values.
Sampling rate unit Description Sampling rate range of values
points/test The number of points acquired during a test,
regardless of how many cycles
10 to 10,000
points/cycle The number of points acquired in each cycle 10 to 10,000
s/point
The number of seconds per each point
0.01 to 100
points/s
The number of points taken per second
0.01 to 100
To select the Sampling Rate Units:
1. From the Menu screen, select Measure Settings.
2. Select Sampling Rate Units.
Figure 24: Measure Settings menu, selecting the Sampling Rate Units
3. Select the units you want to use for the test. You can now set a sampling rate.
