Models 2450
-, 2460-, & 2461-EC Potentiostats And Galvanostats User's Manual Section 5:
Current Pulse and Square Wave
077110402/November 2016 5-7
The Sample Time is the length of time over which the actual measurement is taken. The sample time
cannot exceed the Pulse Width minus 1 ms (PW - 1 ms).
The measurement is taken at the end of the pulse. A brief latency period between the end of the
measurement and the end of the pulse allows the analog-to-digital converter in your galvanostat to
complete the measurement.
To adjust the Sample Time:
1. From the Pulse Settings screen, select Sample Time.
2. Enter a value.
3. Select OK.
Adjust the End Conditions
The End Conditions menu lets you choose the conditions that stop the pulse wave. You can enable or
disable each condition. See the next graphic.

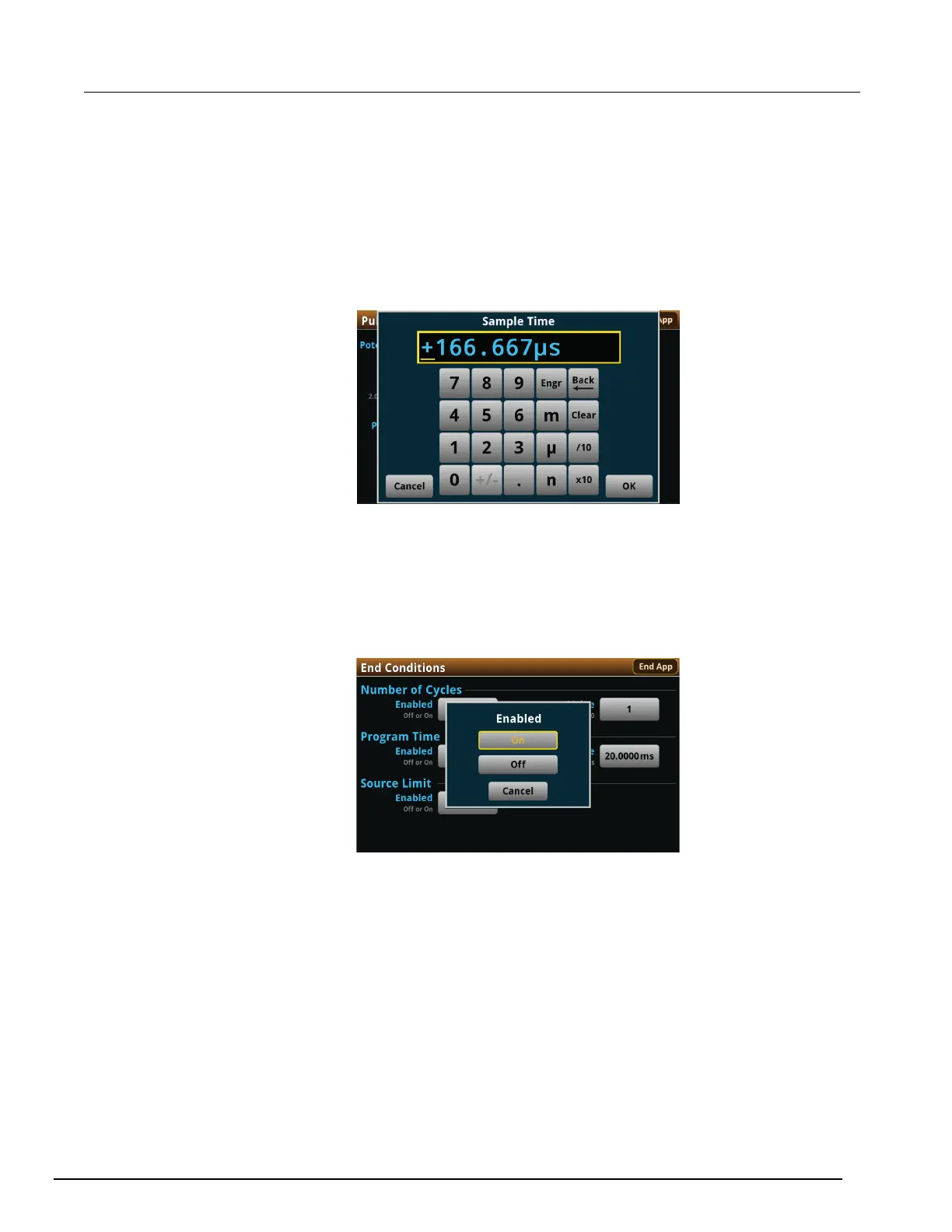

Figure 94: End Conditions menu enable or disable option
