4: Potential Pulse & Square Wave Models 2450-, 2460-, & 2461-EC Potentiostats And Galvanostats
4-8 077110402/November 2016
Adjust the End Conditions
The End Conditions menu lets you choose the conditions that stop the pulse wave. You can enable or
disable each condition. See the next graphic.

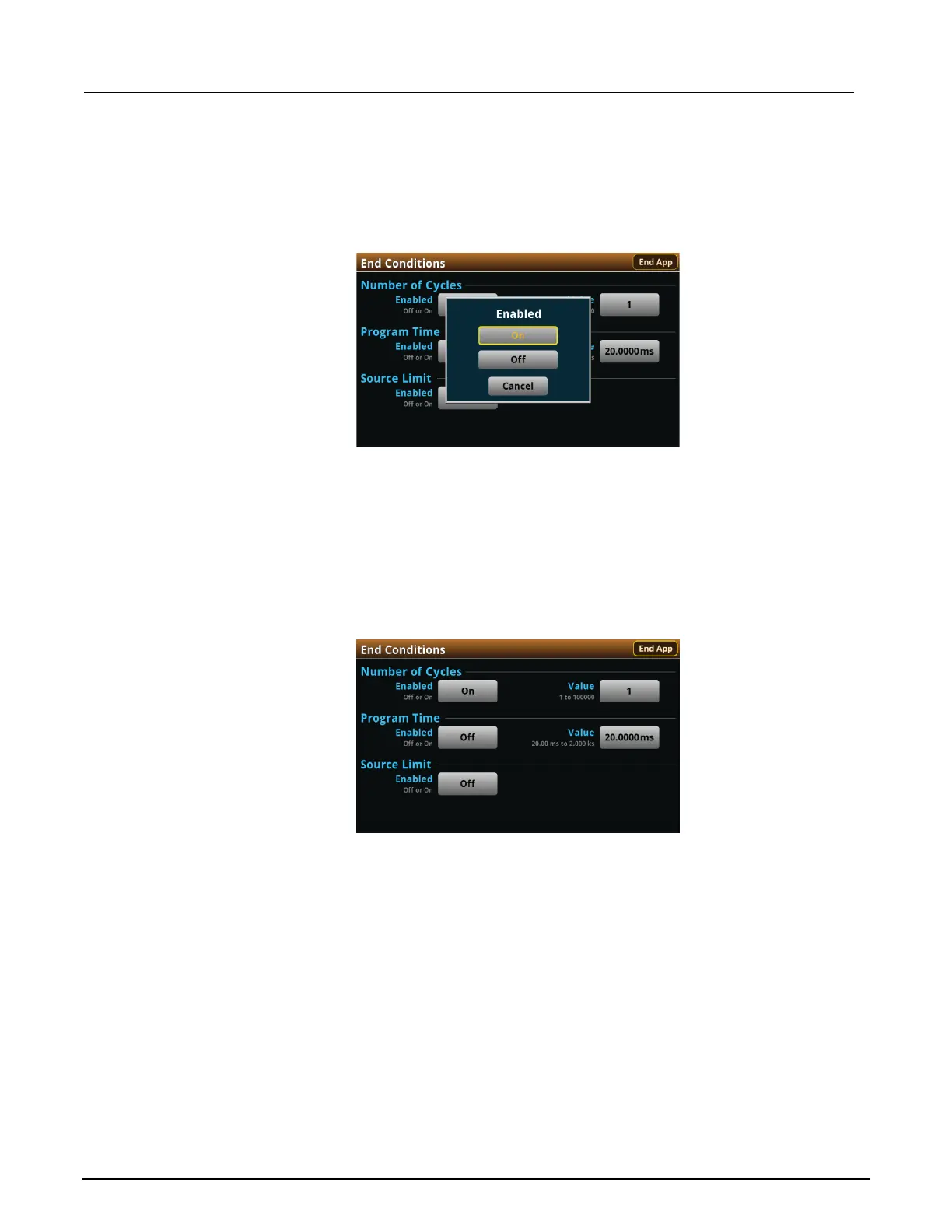

Figure 73: End Conditions menu enable or disable option
If you enable the Number of Cycles, the Program Time is disabled. Conversely, if you enable the
Program Time, the Number of Cycles condition is disabled. The Source Limit setting is independent
of the other two settings.
Use the Number of Cycles end condition to stop generating the waveform after the specified number
of cycles.
To configure the Number of Cycles end condition:
1. Press the MENU key, then select End Conditions.
Figure 74: End Conditions menu
2. Select the Number of Cycles Enabled control.
3. Select On.
4. Select the Number of Cycles Value control
5. Enter a value, then select OK.
