The test home screen controls include:
End App
Select this control to immediately stop the test and return to normal SMU
operation.
Autoscale
Select this control to define the graph based upon the plotted data. This is
useful for constraining all of the data to the screen's viewing size.
Start Test
Select this control to immediately begin the test. This option becomes Stop
Test when the test runs.
Save Data
Select this control to save the test data to a .csv file on a flash drive. This
option is only visible after the test runs.
Cursor
Select this control to cycle through the available cursor placements: None,
Vertical, Horizontal, and Both.
Review the Menu controls
You have different options in the Menu screen, depending on the application. The following graphic
shows the Potential Pulse and Square Wave main Menu. You will learn the function for each option
later in this section.

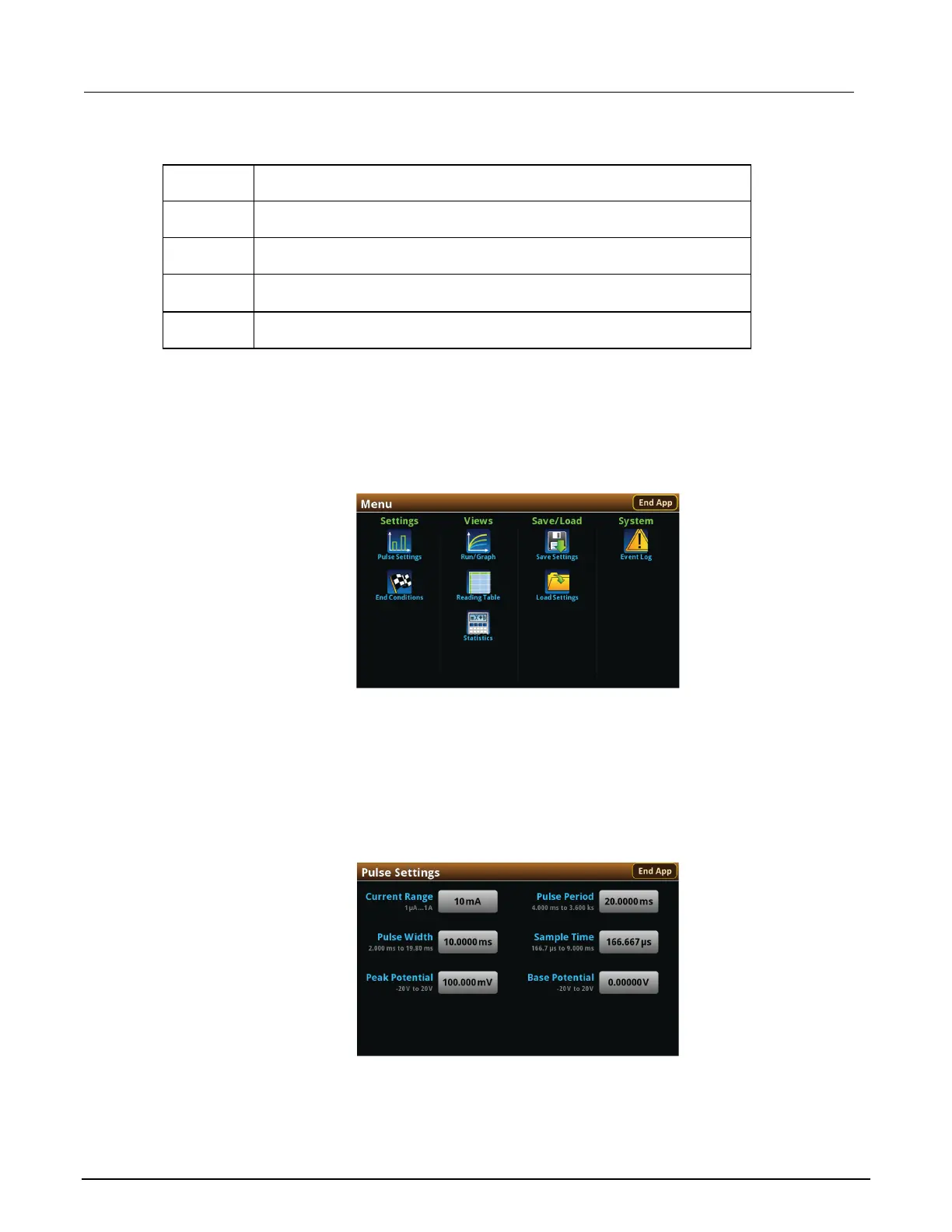

Figure 65: Potential Pulse and Square wave main Menu
Configure the Pulse Settings
Select Pulse Settings from the main menu to adjust the Base Potential, Peak Potential, Current
measure Range, Pulse Period, Pulse Width, and Sample Time.
To adjust the Pulse Settings:
1. Press the MENU key, then select Pulse Settings.
Figure 66: Pulse Settings menu
