2: Cyclic Voltammetry Models 2450-EC, 2460-EC, and 2461-EC Potentiostats And Galvanostats
2-14 077110402/November 2016
Save the test data to the flash drive
You can save the data generated from the test to the front-panel flash drive. The data is stored in a
.csv file that also includes instrument information and parameter settings.
If there are more than 10,000 measurements stored, the process of saving the data may take several
minutes.
To save the test data to the flash drive:
1. Make sure your flash drive is inserted into the front panel USB port.
2. From the test application home screen, select Save Data.
3. Specify a file name, then select OK.
4. Select OK on the confirmation message.

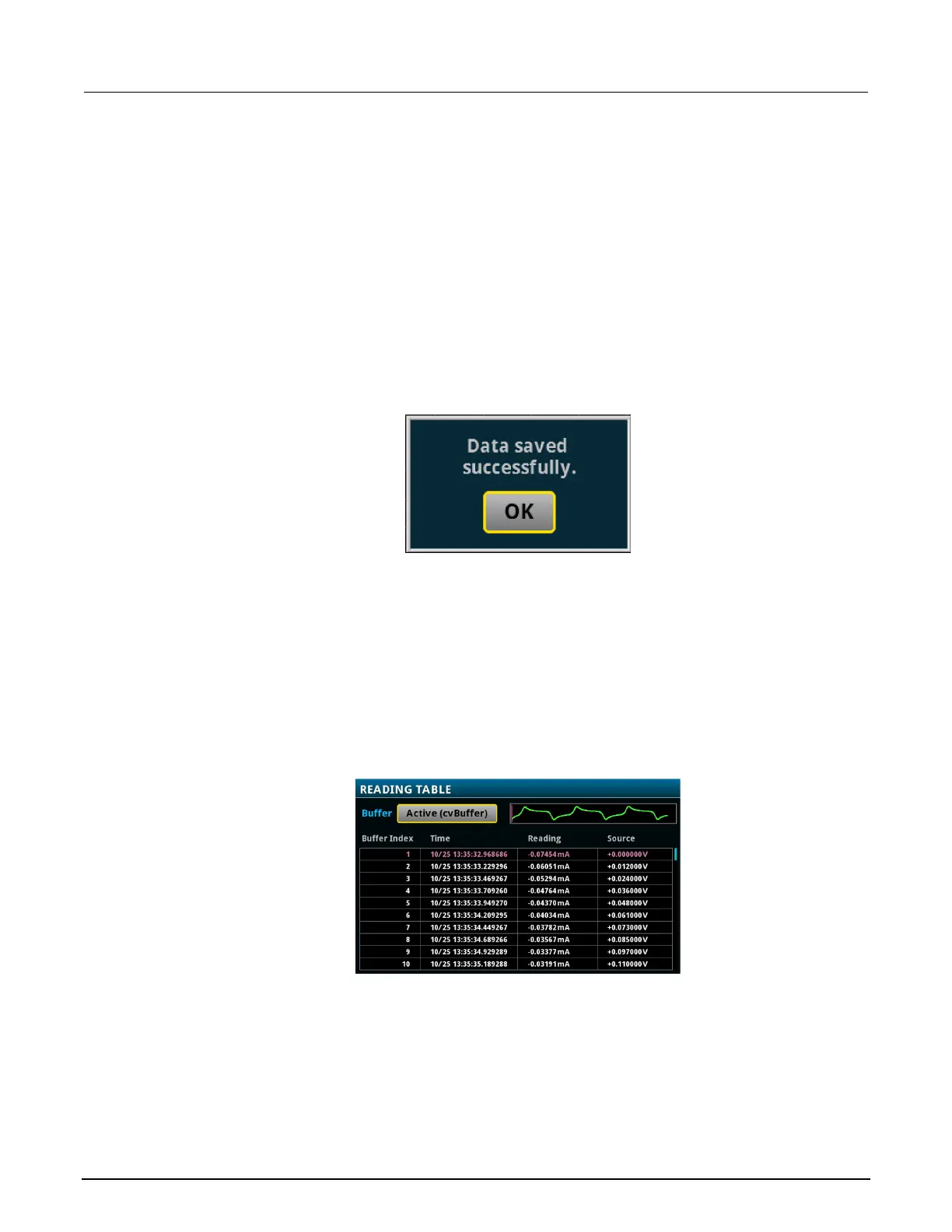

Figure 34: Test results saved successfully
View the results saved to the flash drive
To view the test results, open the saved file in a spreadsheet program on a computer. Current,
voltage, time, and general parameters for the test are included in the file.
View the test reading table
You can view the individual data points by selecting Reading Table from the Menu screen. See the
next figure.
Figure 35: Viewing the Reading Table
