Models 2450
-EC, 2460-EC, and 2461-EC Potentiostats And Galvanostats User's Manual Section 3:
Open Circuit Potential
077110402/November 2016 3-3
4. Select OpenCircuitPotential. The test application begins to run immediately and the OCP
Home screen is displayed.

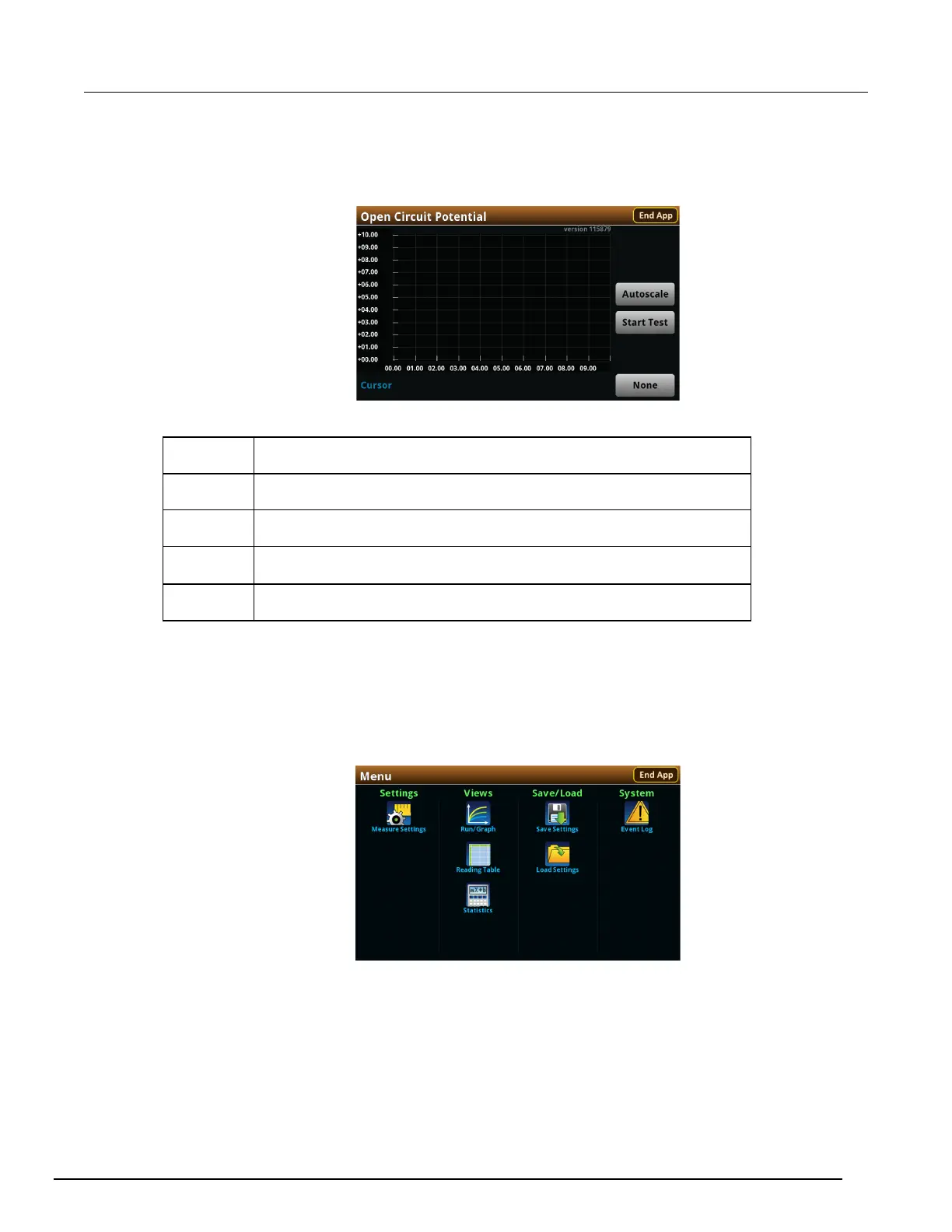

Figure 46: Open Circuit Potential test home screen
The test home screen controls include:
End App
Select this control to immediately stop the test and return to normal SMU
operation.
Autoscale
Select this control to define the graph based upon the plotted data. This is
useful for constraining all of the data to the screen's viewing size.
Start Test
Select this control to immediately begin the test. This option becomes Stop
Test when the test runs.
Save Data
Select this control to save the test data to a .csv file on a flash drive. This
option is only visible after the test runs.
Cursor
Select this control to cycle through the available cursor placements: None,
Vertical, Horizontal, and Both.
Review the Menu controls
You have different options in the Menu screen, depending on the application. The following graphic
shows the Open Circuit Potential main Menu. You will learn the function for each option later in this
section.
Figure 47: Open Circuit Potential main Menu
