5: Current Pulse and Square Wave Models 2450-, 2460-, & 2461-EC Potentiostats And Galvanostats
5-10 077110402/November 2016
To load saved test parameters:
Test parameters can only be loaded to the same instrument model on which they were created and
saved. For example, you cannot load test parameter settings created with a 2450-EC to a 2460-EC.
1. From the Menu screen, select Load Settings.
2. Choose a file by selecting File Selection and then a file number.

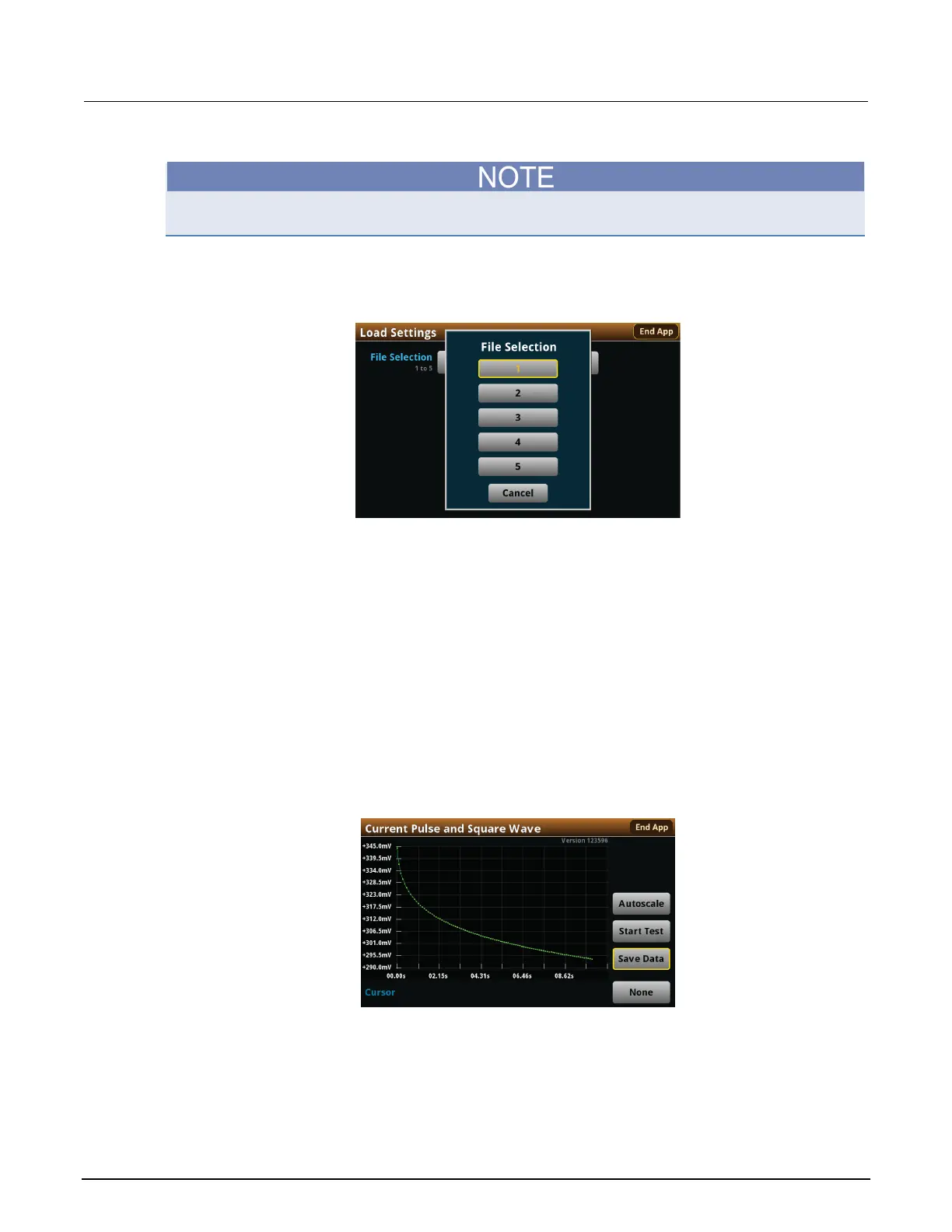

Figure 98: Choosing a file to load
3. Select Load Settings. You will be notified when the load completes.
4. Select OK to clear the prompt.
Run the test and view the graph
To run the test and view the graph:
1. Press the HOME key.
2. Select Start Test. The output turns on and the display automatically shows the current
measurements plotting in real time, along with a progress bar at the bottom of the screen. The
Start Test control also changes to Stop Test for the duration of the test.
The output turns off when the test completes. The following graphic shows the test Home screen after
the test finishes. You can return to this Home screen at any time when the test is running by selecting
the Run / Graph option from the Menu screen.
Figure 99: Current Pulse and Square Wave test results graph
